The PS-1250F1 is a 12V 5Ah lead acid battery designed for desktop applications. It operates within a temperature range of -20°C to 50°C and has a rectangular shape with a flat termination. The battery is available in a bulk packaging configuration with 10 units per package. It is a secondary battery type with a single cell configuration.
Voltage12V
Storage5ah
MountingDesktop
Quick Jump:
Technical Specifications
Power-Sonic PS-1250F1 technical specifications.
General
| Battery Type | SECONDARY |
| Capacity | 5ah |
| Chemistry/Technology | Lead Acid |
| Height | 101mm |
| Length | 90mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -20°C |
| Mount | Desktop |
| Number of Cells | 1 |
| Output Voltage | 12V |
| Package Quantity | 10 |
| Packaging | Bulk |
| Shape | Rectangular |
| Termination | Flat |
| Voltage | 12V |
| Weight | 3.5lb |
| Width | 70mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Power-Sonic PS-1250F1 Datasheet
Download the complete datasheet for Power-Sonic PS-1250F1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

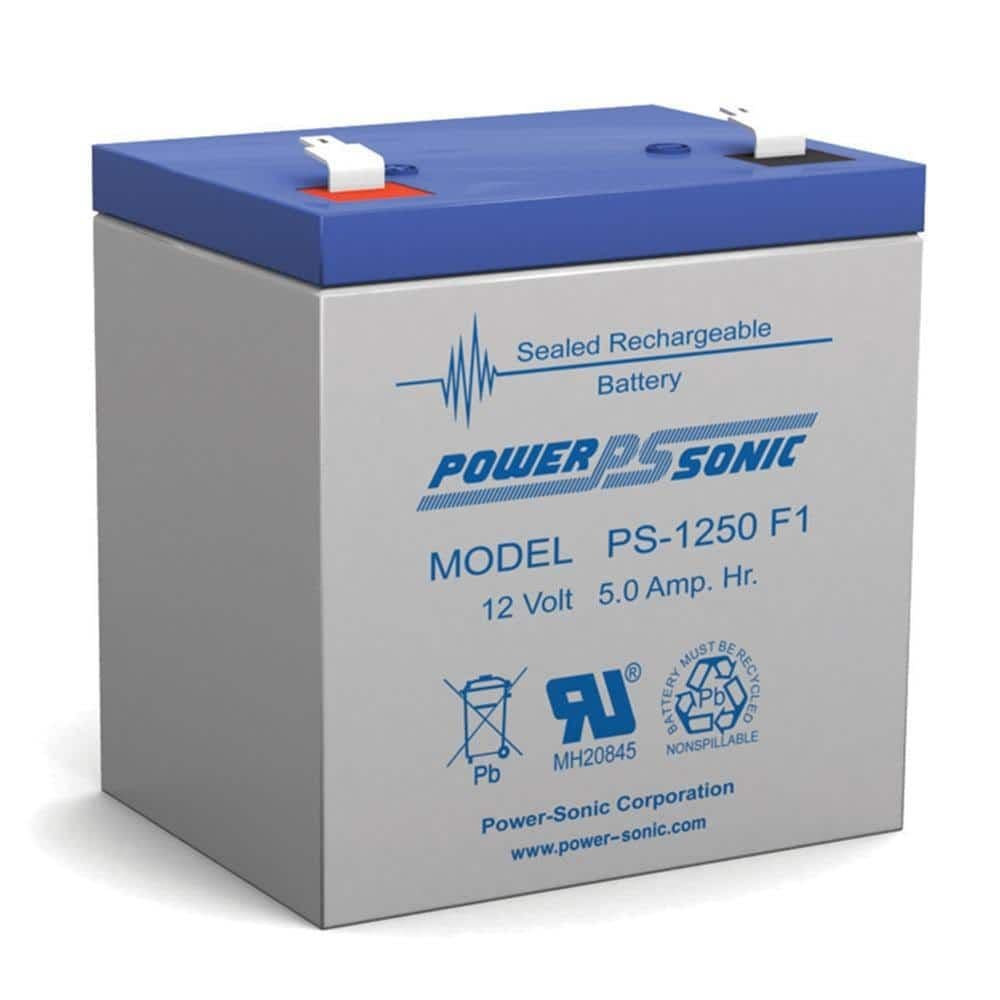

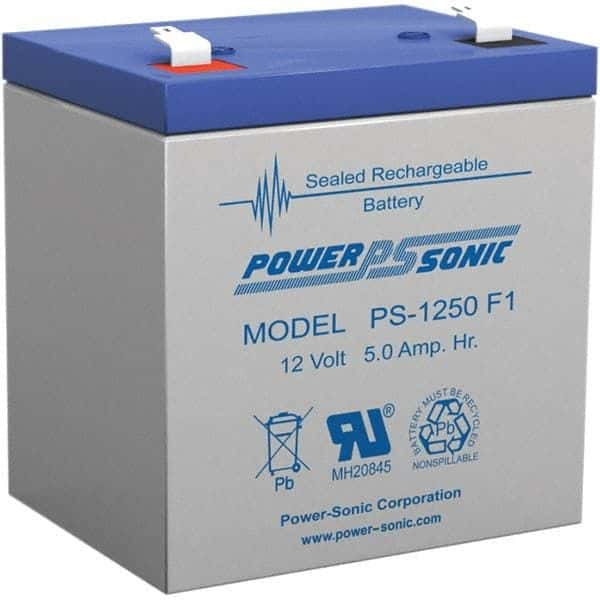

Product Images
