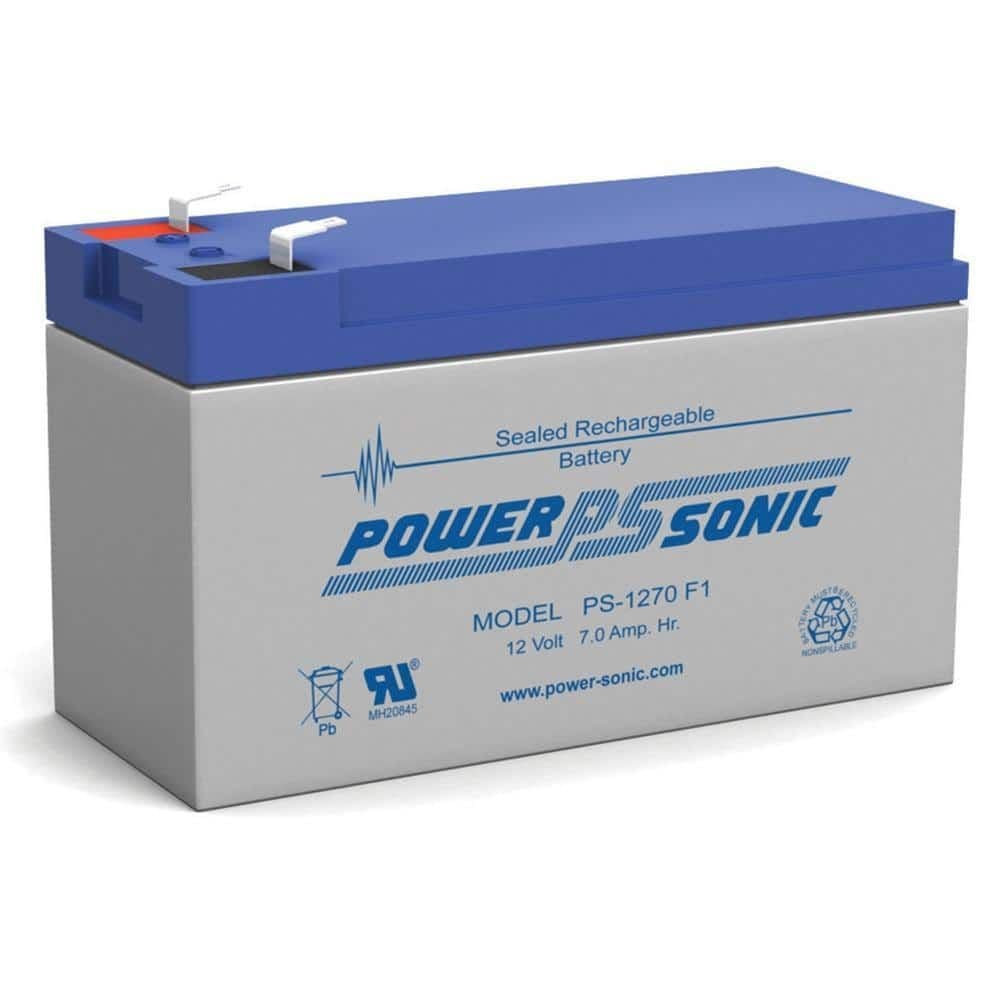

The PS-1270F1 is a 12V 7Ah lead acid battery with a desktop mount and 12V output voltage. It has a maximum operating temperature of 60°C and a minimum operating temperature of -40°C. The battery is available in a bulk packaging with 5 units per package and has a rectangular shape with a flat termination. It is manufactured by Power-Sonic and has a weight of 5.2lb and dimensions of 65mm height, 98mm width, and 151mm length.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Power-Sonic PS-1270F1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Battery Type | SECONDARY |
| Capacity | 7ah |
| Chemistry/Technology | Lead Acid |
| Height | 65mm |
| Length | 151mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Mount | Desktop |
| Number of Cells | 1 |
| Output Voltage | 12V |
| Package Quantity | 5 |
| Packaging | Bulk |
| Shape | Rectangular |
| Termination | Flat |
| Voltage | 12V |
| Weight | 5.2lb |
| Width | 98mm |
| RoHS | Not Compliant |
Download the complete datasheet for Power-Sonic PS-1270F1 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
