The PS-630 is a 6V lead acid battery with a capacity of 3.5Ah. It has a rectangular shape and a flat termination. The battery is designed for desktop mount and is available in a 20-pack quantity. It operates within a temperature range of -40°C to 60°C.
Voltage6V
Storage3.5ah
MountingDesktop
Quick Jump:
Technical Specifications
Power-Sonic PS-630 technical specifications.
General
| Battery Type | SECONDARY |
| Capacity | 3.5ah |
| Chemistry/Technology | Lead Acid |
| Height | 59.7mm |
| Length | 134mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Mount | Desktop |
| Number of Cells | 1 |
| Output Voltage | 6V |
| Package Quantity | 20 |
| Shape | Rectangular |
| Termination | Flat |
| Voltage | 6V |
| Weight | 1.55lb |
| Width | 34mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Power-Sonic PS-630 Datasheet
Download the complete datasheet for Power-Sonic PS-630 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

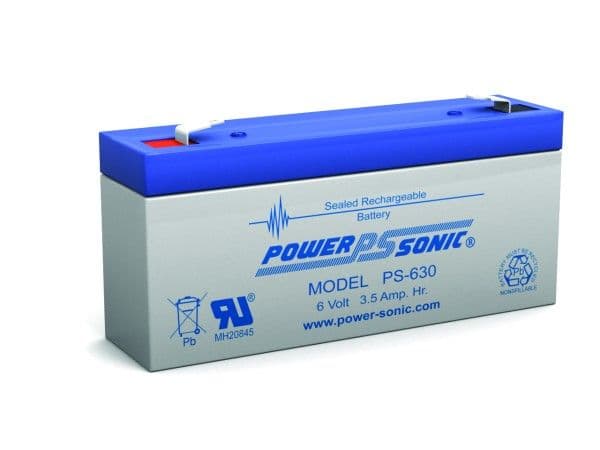

Product Images
