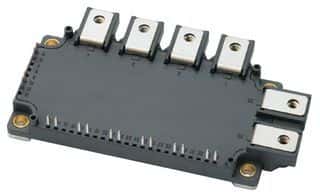

The CM100RX-12A is a high-power insulated gate bipolar transistor (IGBT) module from Powerex. It features a collector-emitter breakdown voltage of 600V and a maximum collector current of 100A. The module is designed for chassis mount applications and has a maximum operating temperature range of -40°C to 150°C. The CM100RX-12A is compliant with RoHS regulations and is packaged in a bulk format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Powerex CM100RX-12A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 600V |
| Collector-emitter Voltage-Max | 2.1V |
| Input | Standard |
| Input Capacitance | 13.3nF |
| Max Collector Current | 100A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400W |
| Mount | Chassis Mount |
| NTC Thermistor | Yes |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | IGBTMOD™ |
| RoHS | Compliant |
