Technical Specifications
Powerex CM100RX-24S technical specifications.
General
Package/Case
Module
Collector Emitter Breakdown Voltage
1.2kV
Collector Emitter Voltage (VCEO)
1.2kV
Collector-emitter Voltage-Max
2.15V
Input
Standard
Input Capacitance
10nF
Max Collector Current
100A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
750W
Mount
Chassis Mount
NTC Thermistor
Yes
Packaging
Bulk
RoHS Compliant
Yes
Series
IGBTMOD™
Compliance
RoHS
Compliant
Datasheet
Powerex CM100RX-24S Datasheet
Download the complete datasheet for Powerex CM100RX-24S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

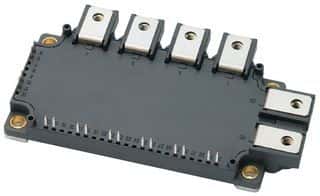

Product Images
