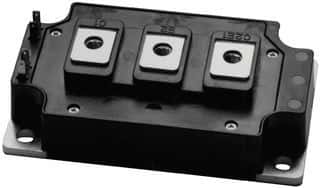

The CM300DY-24S is a high-power insulated gate bipolar transistor (IGBT) from Powerex. It features a collector-emitter breakdown voltage of 1.2kV and a maximum collector current of 300A. The device is designed for chassis mount applications and has a maximum power dissipation of 2.27kW. The operating temperature range is -40°C to 150°C. The CM300DY-24S is available in a module package and is suitable for high-power switching applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Powerex CM300DY-24S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector Emitter Voltage (VCEO) | 1.85V |
| Collector-emitter Voltage-Max | 2.25V |
| Input | Standard |
| Input Capacitance | 30nF |
| Max Collector Current | 300A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.27kW |
| Mount | Chassis Mount |
| NTC Thermistor | No |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS | Compliant |
Download the complete datasheet for Powerex CM300DY-24S to view detailed technical specifications.
