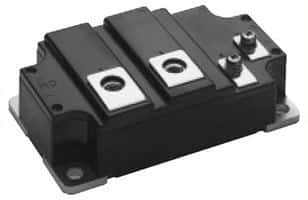

The Powerex CM600HU-12F is a 600V insulated gate bipolar transistor (IGBT) module with a current rating of 600A. It features a flange mount package type and is RoHS compliant. The module operates within a temperature range of -40°C to 150°C and has a maximum power dissipation of 1.42kW. It is suitable for use in high-power applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Powerex CM600HU-12F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 600V |
| Collector Emitter Voltage (VCEO) | 600V |
| Collector-emitter Voltage-Max | 2.2V |
| Current Rating | 600A |
| Input | Standard |
| Input Capacitance | 160nF |
| Max Collector Current | 600A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.42kW |
| Mount | Chassis Mount |
| NTC Thermistor | No |
| Packaging | Bulk |
| Power Dissipation | 2.4kW |
| RoHS Compliant | Yes |
| Series | IGBTMOD™ |
| DC Rated Voltage | 600V |
| RoHS | Compliant |
