The PS21267-AP is a 600V power MOSFET with a maximum operating temperature of 100°C and a minimum operating temperature of -20°C. It has a maximum power dissipation of 55.5W and is packaged in a DIP package for through-hole mounting. The device is lead-free and has a collector-emitter breakdown voltage of 600V. It is part of the Intellimod series and is not RoHS compliant.
PackageDIP
Voltage600V
Current30A
MountingThrough Hole
Quick Jump:
Technical Specifications
Powerex PS21267-AP technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Breakdown Voltage | 600V |
| Collector Emitter Voltage (VCEO) | 600V |
| Current | 30A |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 55.5W |
| Mount | Through Hole |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | Intellimod™ |
| Voltage | 600V |
Compliance
| RoHS | Not Compliant |
Datasheet
Powerex PS21267-AP Datasheet
Download the complete datasheet for Powerex PS21267-AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

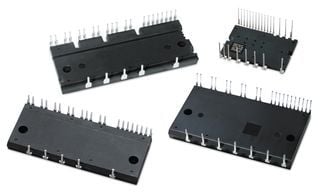

Product Images
