Frequency2.5kHz
Capacitance45nF
Voltage Rating20V
MountingFlush
Quick Jump:
Technical Specifications
Projects Unlimited AB2725S technical specifications.
General
| Capacitance | 45nF |
| Diameter | 27mm |
| Frequency | 2.5kHz |
| Impedance | 500R |
| Inside Diameter | 20mm |
| Lead Free | Lead Free |
| Max Input Voltage | 20V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Flush |
| Operating Supply Voltage | 3V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Self Resonant Frequency | 300Hz |
| Series | AB |
| Termination | Wire |
| Thickness | 220um |
| Voltage Rating | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Projects Unlimited AB2725S Datasheet
Download the complete datasheet for Projects Unlimited AB2725S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

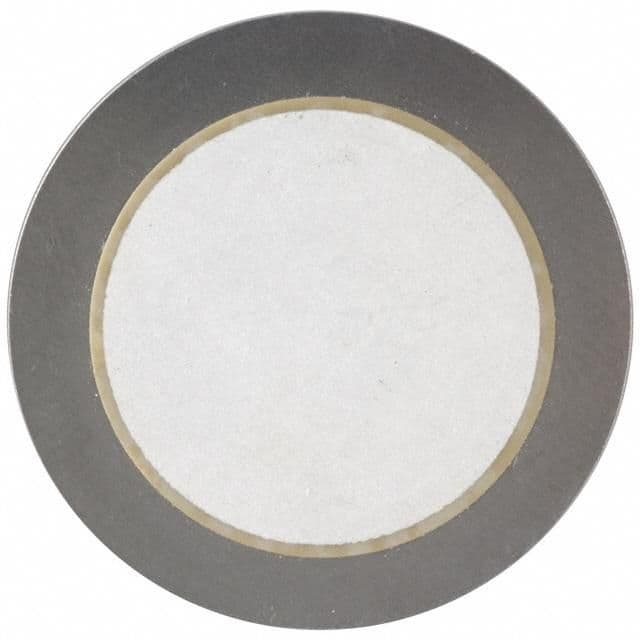

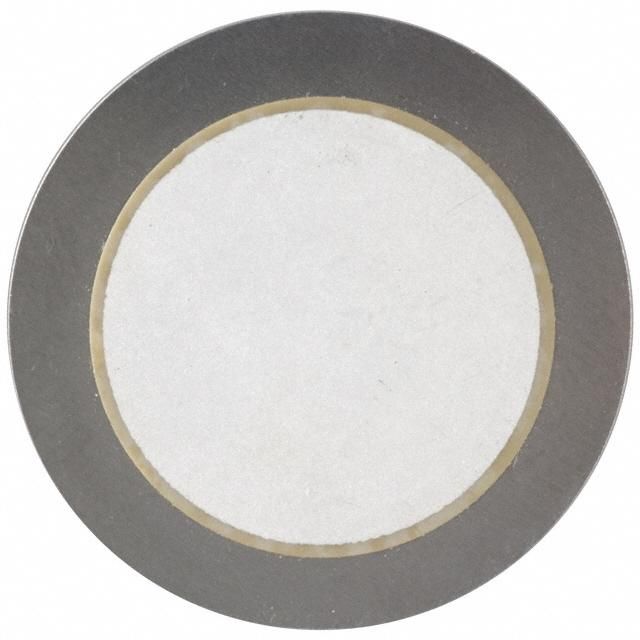

Product Images
