Piezo audio indicator with a 12V DC nominal supply voltage, operating between 3V and 20V DC. Features a 2.9kHz self-resonant frequency and a 2.9kHz frequency range, with a maximum current rating of 8mA. This through-hole mount component has a black color, tin contact plating, and PC pin termination. Dimensions include a 23.8mm diameter and 16mm height.
Frequency2.9kHz
Voltage Rating12V
Current Rating8mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Projects Unlimited AI-2429-TWT-12V-3-R technical specifications.
General
Color
Black
Contact Plating
Tin
Current Rating
8mA
Diameter
23.8mm
Frequency
2.9kHz
Height
16mm
Input Current
10mA
Input Type
DC
Lead Free
Lead Free
Length
23.8mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Supply Current
8mA
Max Supply Voltage (DC)
20V
Min Supply Voltage (DC)
3V
Max Supply Voltage
20V
Min Supply Voltage
3V
Mount
Through Hole
Nominal Supply Voltage (DC)
12V
Operating Supply Current
8mA
Outside Diameter
23.8mm
Package Quantity
50
Packaging
Tray
Reach SVHC Compliant
Unknown
Self Resonant Frequency
2.9kHz
Series
AI
Termination
PC Pins
Voltage Rating
12V
DC Rated Voltage
12V
Width
23.8mm
Compliance
RoHS
Compliant
Datasheet
Projects Unlimited AI-2429-TWT-12V-3-R Datasheet
Download the complete datasheet for Projects Unlimited AI-2429-TWT-12V-3-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

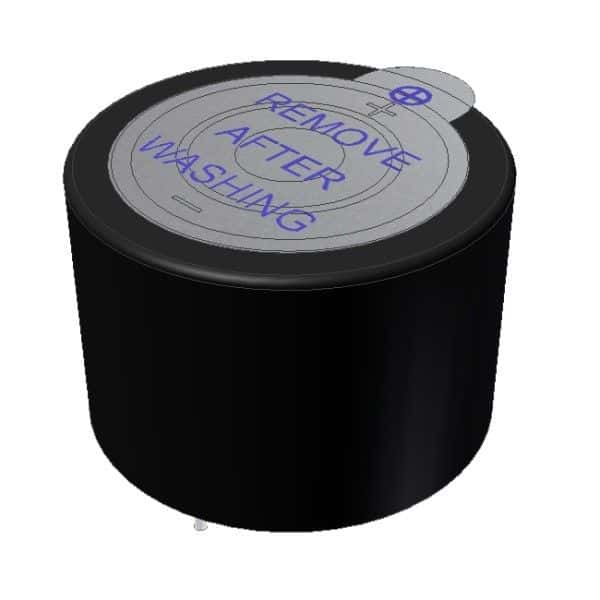

Product Images
