Piezo audio indicator with a DC input type, operating across a 3VDC to 28VDC voltage range. Features a nominal supply voltage of 12VDC and a maximum operating current of 7mA. Delivers a sound pressure level of 95dBAdBA at a self-resonant frequency between 2.3kHz and 3.3kHz. Designed for flange or panel mounting with wire lead termination. Dimensions include a 41.8mm diameter and 16mm height.
Frequency2.8kHz
Voltage Rating12V
Current Rating7mA
MountingFlanges, Panel
Quick Jump:
Technical Specifications
Projects Unlimited AI-4228-TF-LW140-4-R technical specifications.
General
| Current Rating | 7mA |
| Diameter | 41.8mm |
| Frequency | 2.8kHz |
| Height | 16mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 60mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 7mA |
| Max Supply Voltage (DC) | 28V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 3V |
| Mount | Flanges, Panel |
| Nominal Supply Voltage (DC) | 12V |
| Operating Supply Current | 7mA |
| Outside Diameter | 41.8mm |
| Package Quantity | 90 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Self Resonant Frequency | 2.8kHz |
| Series | AI |
| Termination | Wire Leads |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
| Width | 41.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Projects Unlimited AI-4228-TF-LW140-4-R Datasheet
Download the complete datasheet for Projects Unlimited AI-4228-TF-LW140-4-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

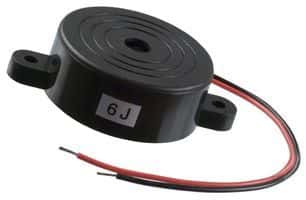

Product Images
