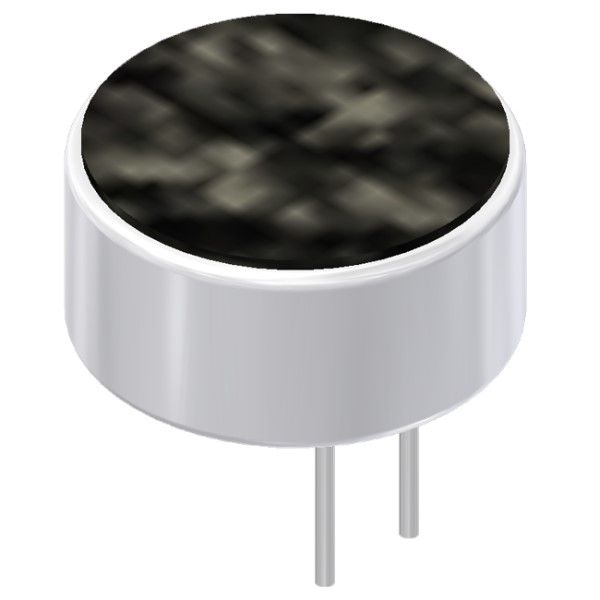

The AOM-4540P-R is a 1.5V omni-directional microphone with a nominal supply current of 500uA. It has a maximum supply voltage of 1.5V and an impedance of 2.2kR. The microphone is available in a circular, round shape with a diameter of 9.7mm and a height of 4.7mm. It is mounted on a PCB and packaged in bulk. The AOM-4540P-R is not Reach SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Projects Unlimited AOM-4540P-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 4.5mm |
| Diameter | 9.7mm |
| Direction | Omnidirectional |
| Height | 4.7mm |
| Impedance | 2.2kR |
| Length | 9.7mm |
| Max Supply Voltage (DC) | 10V |
| Max Supply Voltage | 1.5V |
| Mount | PCB |
| Nominal Input Voltage | 1.5V |
| Nominal Supply Voltage (DC) | 1.5V |
| Operating Supply Current | 500uA |
| Output Type | Analog |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | AOM |
| Shape | Circular, Round |
| Termination | Pin |
| Voltage Rating | 1.5V |
| Width | 9.7mm |
| RoHS | Compliant |
