Frequency4kHz
Voltage Rating3V
Current Rating1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Projects Unlimited AT-1740-TT-3-R technical specifications.
General
| Contact Plating | Tin |
| Current Rating | 1mA |
| Depth | 6.7mm |
| Diameter | 16.5mm |
| Frequency | 4kHz |
| Height | 6.7mm |
| Input Current | 1mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 1mA |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 1V |
| Mount | Through Hole |
| Operating Supply Current | 1mA |
| Outside Diameter | 16.5mm |
| Package Quantity | 50 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Self Resonant Frequency | 4kHz |
| Series | AT |
| Shape | Round |
| Termination | PC Pins |
| Voltage Rating | 3V |
Compliance
| RoHS | Not Compliant |
Datasheet
Projects Unlimited AT-1740-TT-3-R Datasheet
Download the complete datasheet for Projects Unlimited AT-1740-TT-3-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

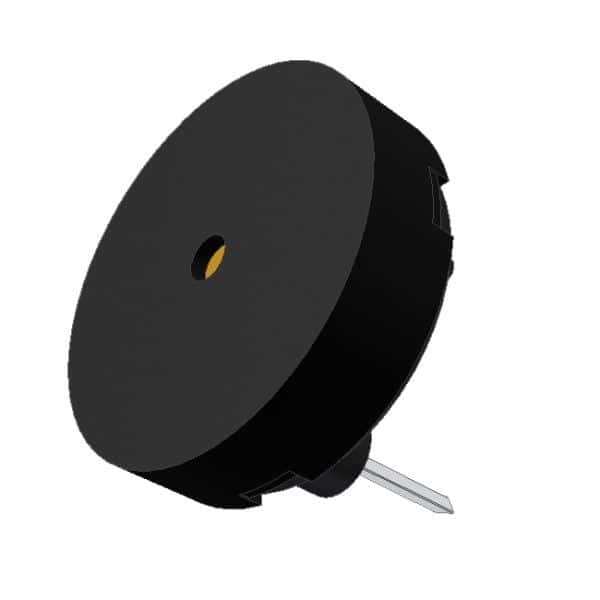

Product Images
