Omnidirectional MEMS microphone with a sensitivity of -44dB. Features a 2V nominal supply voltage, 500µA operating current, and 2.2kΩ impedance. This circular, round component measures 6mm in diameter and 1.6mm in height, with PC pin termination. Rated IP57 and waterproof, it operates with a maximum supply voltage of 10V DC. Supplied in bulk packaging.
Resistance2200R
Voltage Rating2V
Quick Jump:
Technical Specifications
Projects Unlimited POW-1644P-B-R technical specifications.
General
Depth
1.6mm
Diameter
6mm
Direction
Omnidirectional
Height
1.6mm
Impedance
2.2kR
Length
6mm
Max Supply Voltage (DC)
10V
Nominal Supply Voltage (DC)
2V
Operating Supply Current
500uA
Output Type
Analog
Package Quantity
100
Packaging
Bulk
Ratings
IP57, Waterproof
Resistance
2200R
RoHS Compliant
Yes
Series
POW
Shape
Circular, Round
Termination
PC Pins
Voltage Rating
2V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Projects Unlimited POW-1644P-B-R Datasheet
Download the complete datasheet for Projects Unlimited POW-1644P-B-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

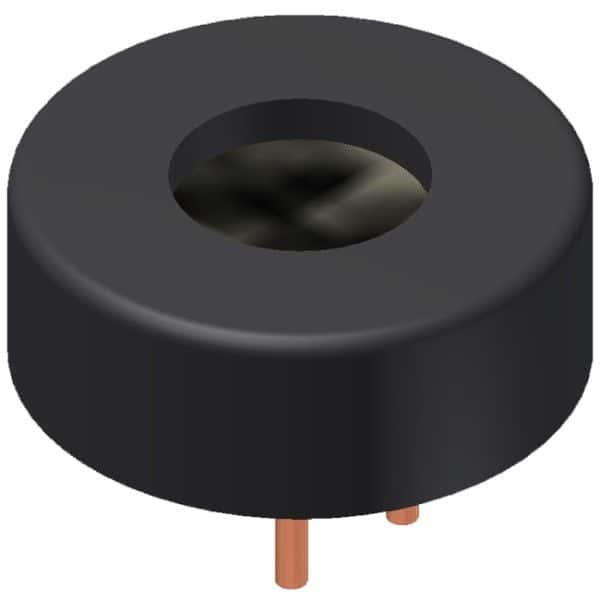

Product Images
