Surface mount audio magnetic indicator operating from 4-7V DC. Features a 5V nominal DC supply voltage and 30mA operating current. Delivers a 2.4kHz frequency with a self-resonant frequency of 2.4kHz. Constructed with lead-free and RoHS compliant materials, this component measures 12.8mm in length and width, with a height of 6.5mm, and operates within a temperature range of -40°C to 85°C.
Frequency2.4kHz
Voltage Rating5V
Current Rating30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Projects Unlimited SMI-1324-TW-5V-2-R technical specifications.
General
| Current Rating | 30mA |
| Frequency | 2.4kHz |
| Height | 6.5mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 12.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 30mA |
| Max Supply Voltage | 7V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Nominal Supply Voltage (DC) | 5V |
| Operating Supply Current | 30mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 2.4kHz |
| Series | SMI |
| Termination | Solder |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| Width | 12.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Projects Unlimited SMI-1324-TW-5V-2-R Datasheet
Download the complete datasheet for Projects Unlimited SMI-1324-TW-5V-2-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

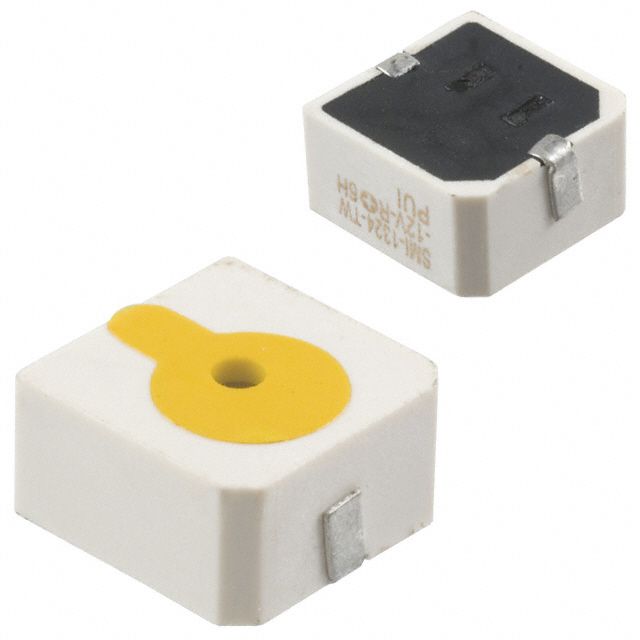

Product Images
