Surface mount audio magnetic transducer with a 2.7kHz self-resonant frequency and 2.83kHz bandwidth. Operates with a 2V to 5V supply voltage, featuring a 12 Ohm impedance and a 120mA current rating. This lead-free component is RoHS compliant, measuring 7.5mm in length, 7.5mm in width, and 2mm in height, suitable for solder termination and supplied in tape and reel packaging.
Frequency2.7kHz
Voltage Rating3.6V
Current Rating120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Projects Unlimited SMT-0727-S-R technical specifications.
General
| Bandwidth | 2.83kHz |
| Current Rating | 120mA |
| Depth | 2mm |
| Frequency | 2.7kHz |
| Height | 2mm |
| Impedance | 12R |
| Input Current | 120mA |
| Lead Free | Lead Free |
| Length | 7.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 120mA |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Operating Supply Current | 120mA |
| Operating Supply Voltage | 3.6V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 2.7kHz |
| Series | SMT |
| Shape | Square |
| Termination | Solder |
| Voltage Rating | 3.6V |
| Width | 7.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Projects Unlimited SMT-0727-S-R Datasheet
Download the complete datasheet for Projects Unlimited SMT-0727-S-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

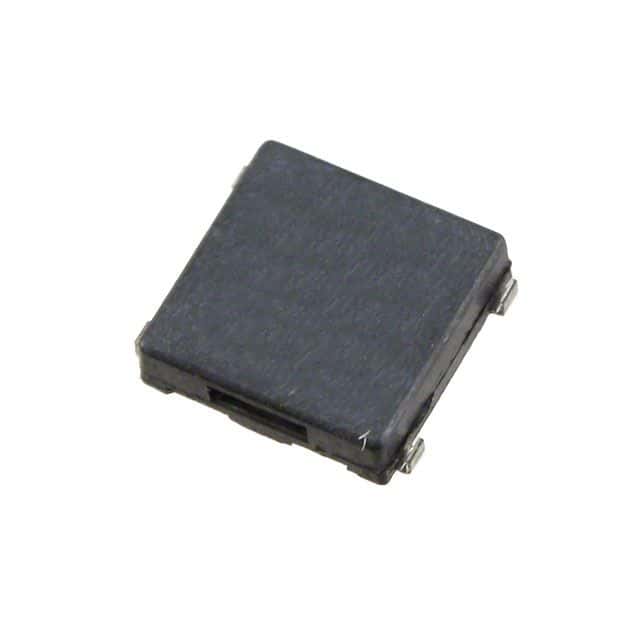

Product Images
