Analog MEMS microphone with omnidirectional pickup pattern. Features a 2.2kΩ impedance and -45dB sensitivity. Operates with a nominal supply voltage of 2V DC, drawing 500µA. This circular, round component measures 4mm in diameter and 1.5mm in depth, designed for PCB mounting via PC pins.
Voltage Rating2V
Current Rating500uA
MountingPCB
Quick Jump:
Technical Specifications
Projects Unlimited TOM-1545P-R technical specifications.
General
| Current Rating | 500uA |
| Depth | 1.5mm |
| Diameter | 4mm |
| Direction | Omnidirectional |
| Height | 1.5mm |
| Impedance | 2.2kR |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Supply Voltage (DC) | 10V |
| Max Supply Voltage | 2V |
| Mount | PCB |
| Nominal Supply Voltage (DC) | 2V |
| Operating Supply Current | 500uA |
| Output Type | Analog |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | TOM |
| Shape | Circular, Round |
| Termination | PC Pins |
| Voltage Rating | 2V |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Projects Unlimited TOM-1545P-R Datasheet
Download the complete datasheet for Projects Unlimited TOM-1545P-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

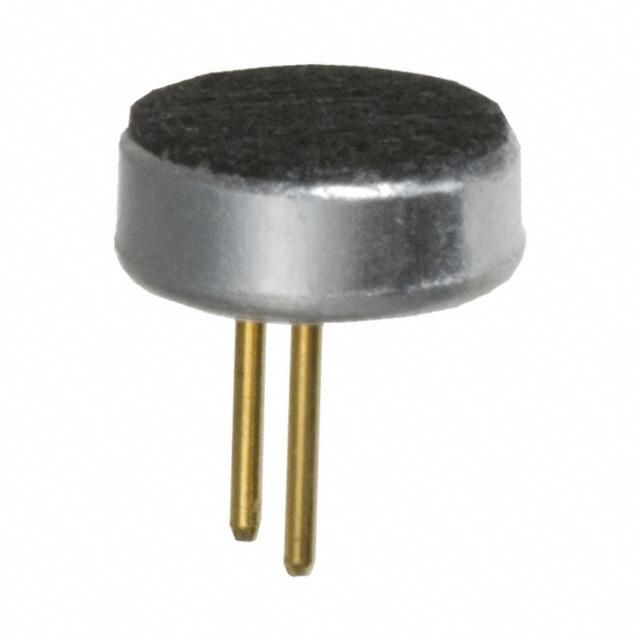

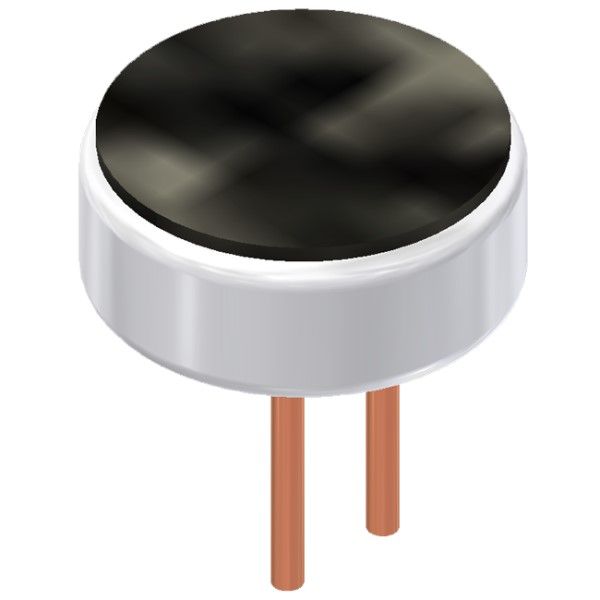

Product Images
