Pulse
H0022NL
Datacom Transformer, LAN; 10/100 BASE-TX; ETHERNET Application(s), 1:1; 1:1, ROHS COMPLIANT
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Pulse H0022NL technical specifications.
General
Package/Case
Module
Depth
11.43mm
Height
2.16mm
Height - Seated (Max)
2.16mm
Insertion Loss
-2dB
Isolation Voltage
1.5kV
Lead Free
Lead Free
Lead/Base Style
Gull Wing
Length
11.81mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Package Quantity
40
Packaging
Rail/Tube
Primary Impedance
1R
Radiation Hardening
No
Return Loss
-12dB
RoHS Compliant
Yes
Secondary Impedance
1R
Termination
SMD/SMT
Turns Ratio
1:1
Width
8.63mm
Compliance
RoHS
Compliant
Datasheet
Pulse H0022NL Datasheet
Download the complete datasheet for Pulse H0022NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

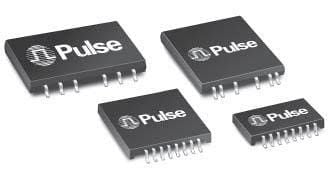

Product Images
