The Pulse H1012 is a module transformer with a 1:1 turns ratio and a current rating of 8mA. It has a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. The transformer is designed for surface mount applications and is packaged in a rail or tube format with 20 units per package.
PackageModule
Current Rating8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Pulse H1012 technical specifications.
General
| Package/Case | Module |
| Current Rating | 8mA |
| Depth | 12.83mm |
| Height | 6.22mm |
| Height - Seated (Max) | 6.22mm |
| Insertion Loss | -1dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Contains Lead |
| Lead/Base Style | Gull Wing |
| Length | 25.4mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Return Loss | -14dB |
| RoHS Compliant | No |
| Shielding | Unshielded |
| Termination | Pin |
| Turns Ratio | 1:1 |
| Weight | 0.105822oz |
| Width | 9.91mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Pulse H1012 Datasheet
Download the complete datasheet for Pulse H1012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

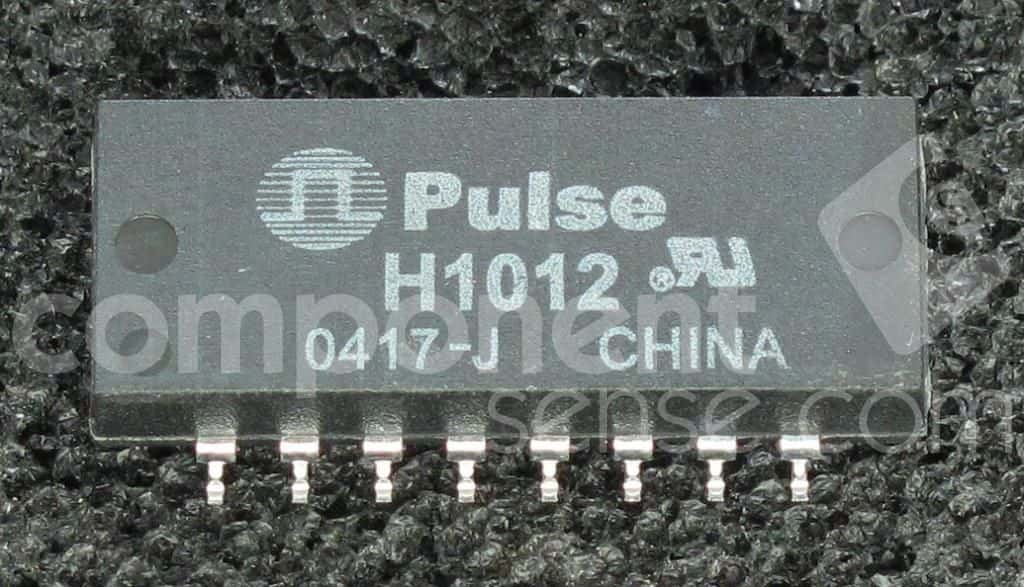

Product Images
