PackageSOIC
Current Rating8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Pulse H1102 technical specifications.
General
Package/Case
SOIC
Current Rating
8mA
Depth
9.53mm
Height
6.09mm
Height - Seated (Max)
5.97mm
Insertion Loss
-1.1dB
Isolation Voltage
1.5kV
Lead Free
Contains Lead
Lead/Base Style
Gull Wing
Length
12.7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
Return Loss
-11.5dB
RoHS Compliant
No
Shielding
Unshielded
Termination
SMD/SMT
Turns Ratio
1:1
Weight
0.098767oz
Width
7.11mm
Compliance
RoHS
Not CompliantNo
Datasheet
Pulse H1102 Datasheet
Download the complete datasheet for Pulse H1102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

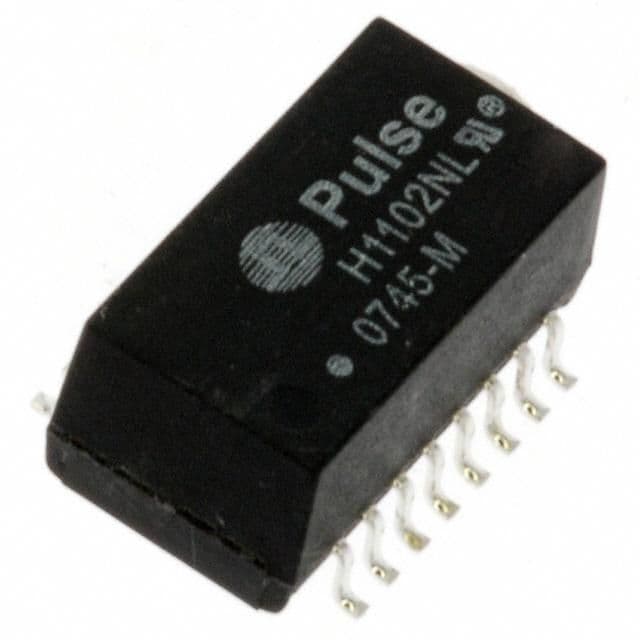

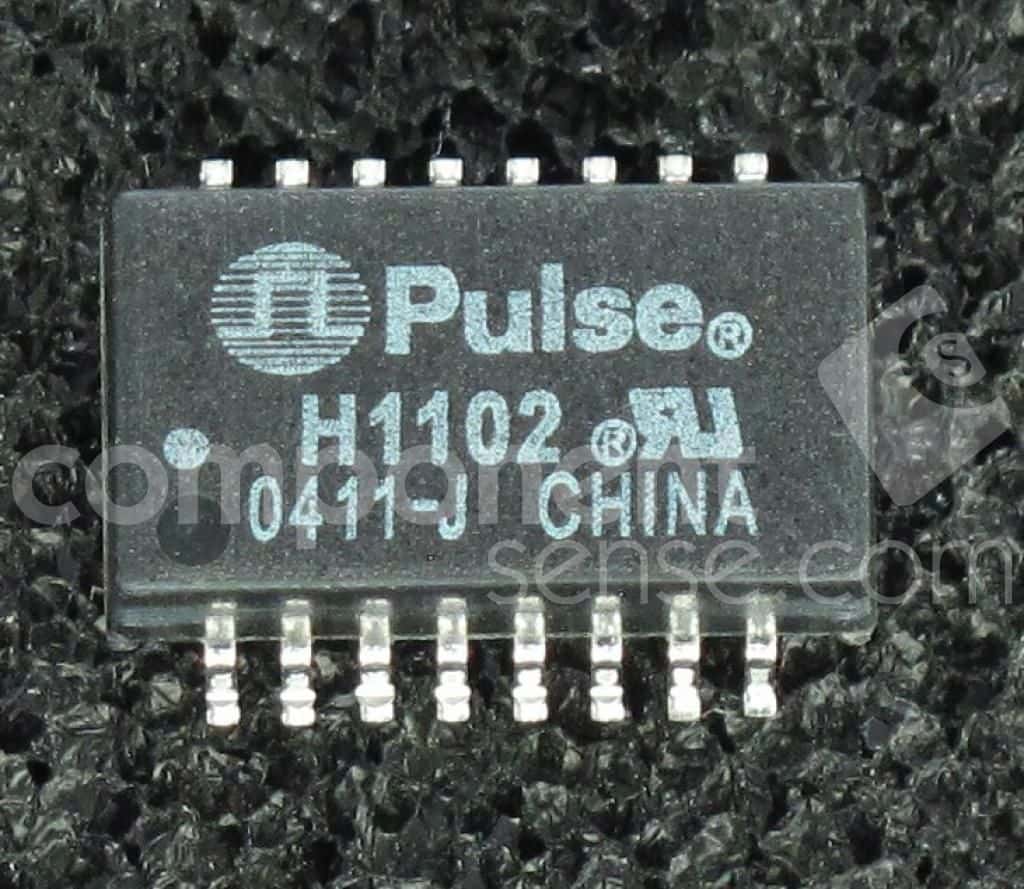

Product Images
