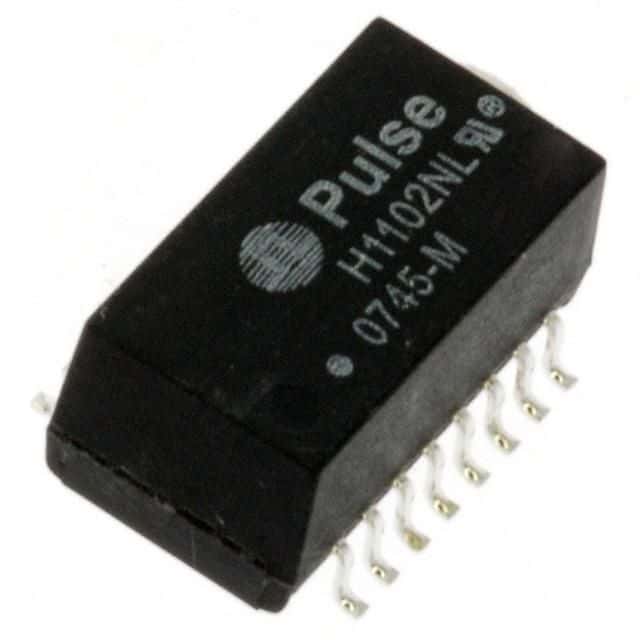

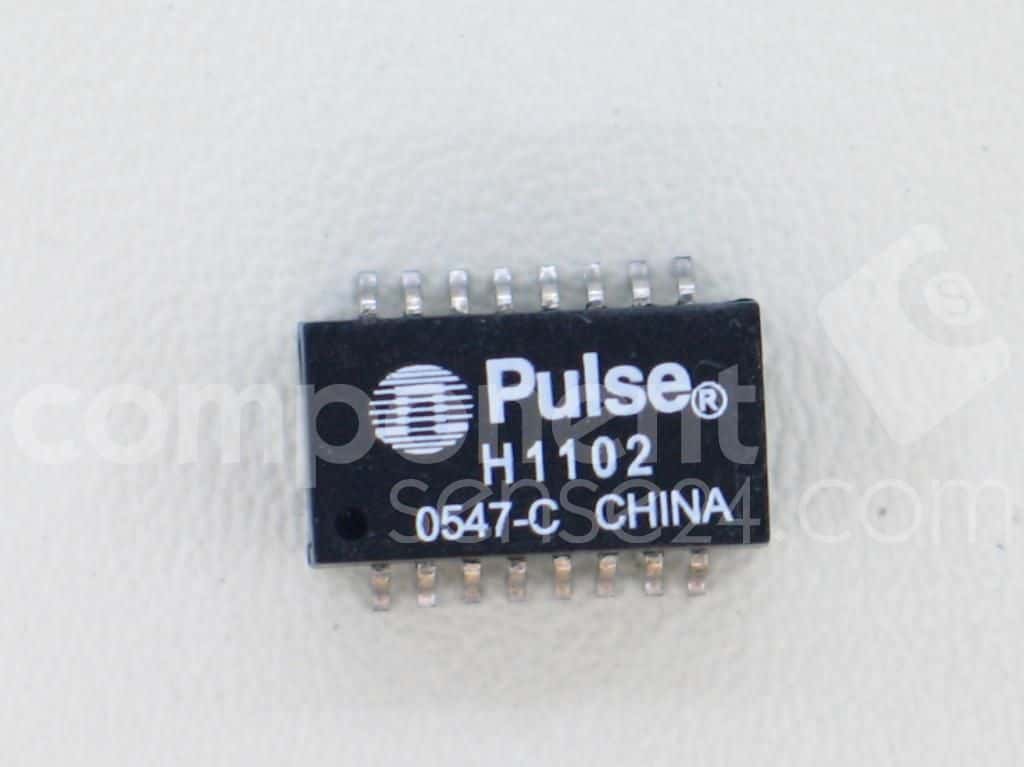

Surface mount telecom transformer featuring a 1:1 turns ratio and 350µH inductance. Offers 1.5kV isolation voltage with low 650mΩ primary and secondary DC resistance. Designed with gull wing leads for SMD termination, this unshielded module has a compact footprint with dimensions of 12.7mm length, 7.11mm width, and 6.09mm height. Performance includes -1.1dB insertion loss and -11.5dB return loss, operating within a 0°C to 70°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse H1102NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| DC Resistance (DCR) | 650mR |
| Depth | 9.53mm |
| Height | 6.09mm |
| Height - Seated (Max) | 6.22mm |
| Inductance | 350uH |
| Insertion Loss | -1.1dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 12.7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Return Loss | -11.5dB |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Weight | 0.098767oz |
| Width | 7.11mm |
| RoHS | Compliant |
Download the complete datasheet for Pulse H1102NL to view detailed technical specifications.
