1:1 turns ratio telecom transformer with 3.5 Ohm primary DC resistance. Features a 1.5kV isolation voltage and -12dB return loss, with -1.2dB insertion loss. Surface mountable module with gull wing leads, measuring 12.7mm L x 7.11mm W x 5.97mm H. Operates from 0°C to 70°C, is lead-free and RoHS compliant.
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Pulse H2019NL technical specifications.
General
| Package/Case | Module |
| DC Resistance (DCR) | 3.5R |
| Depth | 9.4mm |
| Height | 5.97mm |
| Height - Seated (Max) | 5.97mm |
| Insertion Loss | -1.2dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 12.7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Return Loss | -12dB |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Width | 7.11mm |
Compliance
| RoHS | Compliant |
Datasheet
Pulse H2019NL Datasheet
Download the complete datasheet for Pulse H2019NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

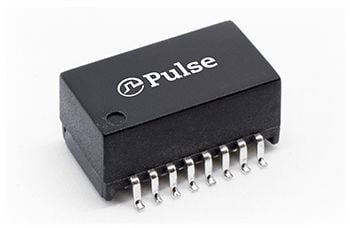

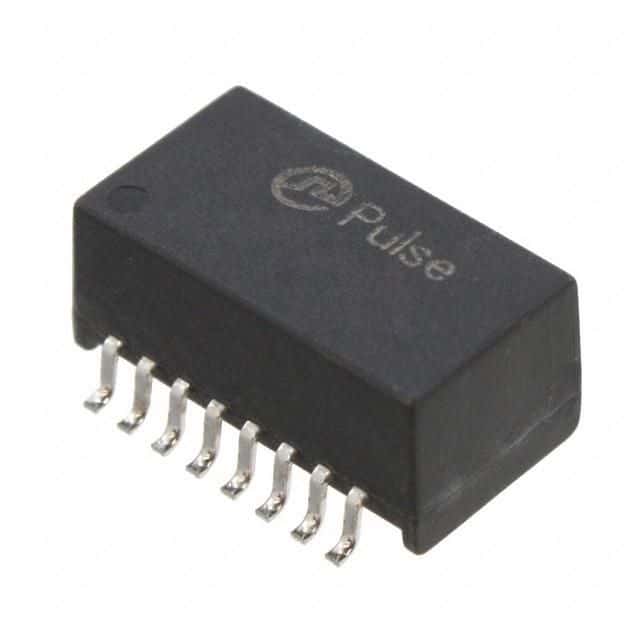

Product Images
