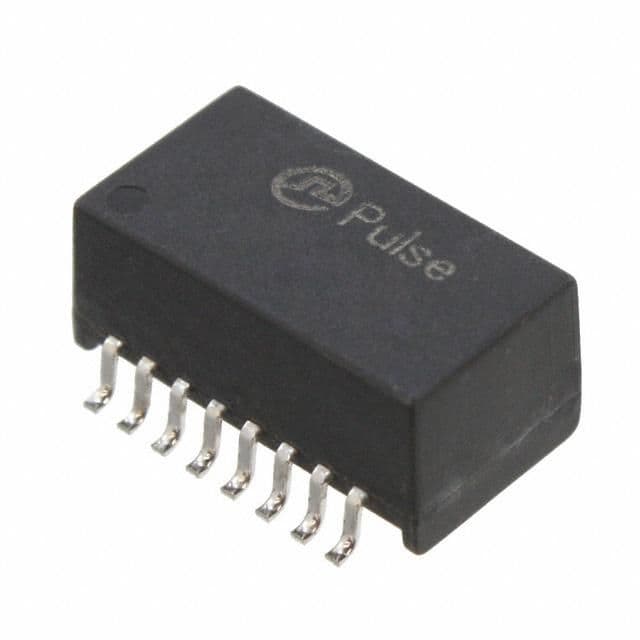

1:1 turns ratio telecom transformer with 3.5 Ohm primary DCR. Features 1.5kV isolation voltage and -12dB return loss. Surface mount SOIC package with gull wing leads, suitable for SMD/SMT termination. Operates from 0°C to 70°C with 7.11mm width, 5.97mm height, and 12.7mm length. RoHS compliant and unshielded.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Pulse H2019NLT technical specifications.
General
Package/Case
SOIC
DC Resistance (DCR)
3.5R
Depth
7.11mm
Height
5.97mm
Height - Seated (Max)
5.97mm
Insertion Loss
-1.2dB
Insertion Loss
1.2dB
Isolation Voltage
1.5kV
Lead/Base Style
Gull Wing
Length
12.7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Return Loss
-12dB
RoHS Compliant
Yes
Shielding
Unshielded
Termination
SMD/SMT
Turns Ratio
1:1
Width
7.11mm
Compliance
RoHS
Compliant
