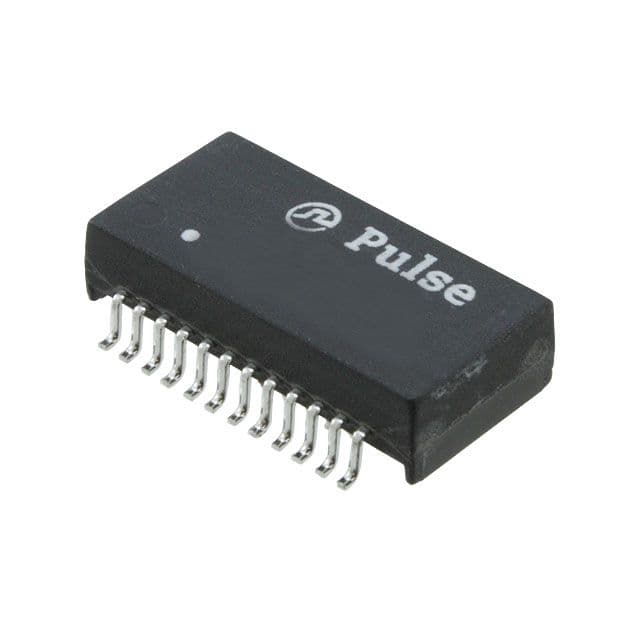

1000 BASE-T Ethernet pulse transformer featuring a 1:1 turns ratio and 1.5kV isolation voltage. Surface mount module with Gull Wing leads, measuring 15.11mm L x 6.35mm W x 4.01mm H (4.26mm max seated). Offers -18dB return loss and 1dB insertion loss, operating between 0°C and 70°C. RoHS compliant and unshielded.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse H5084NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Depth | 6.35mm |
| Height | 4.01mm |
| Height - Seated (Max) | 4.26mm |
| Insertion Loss | 1dB |
| Isolation Voltage | 1.5kV |
| Lead/Base Style | Gull Wing |
| Length | 15.11mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Return Loss | -18dB |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Width | 6.35mm |
| RoHS | Compliant |
Download the complete datasheet for Pulse H5084NL to view detailed technical specifications.
