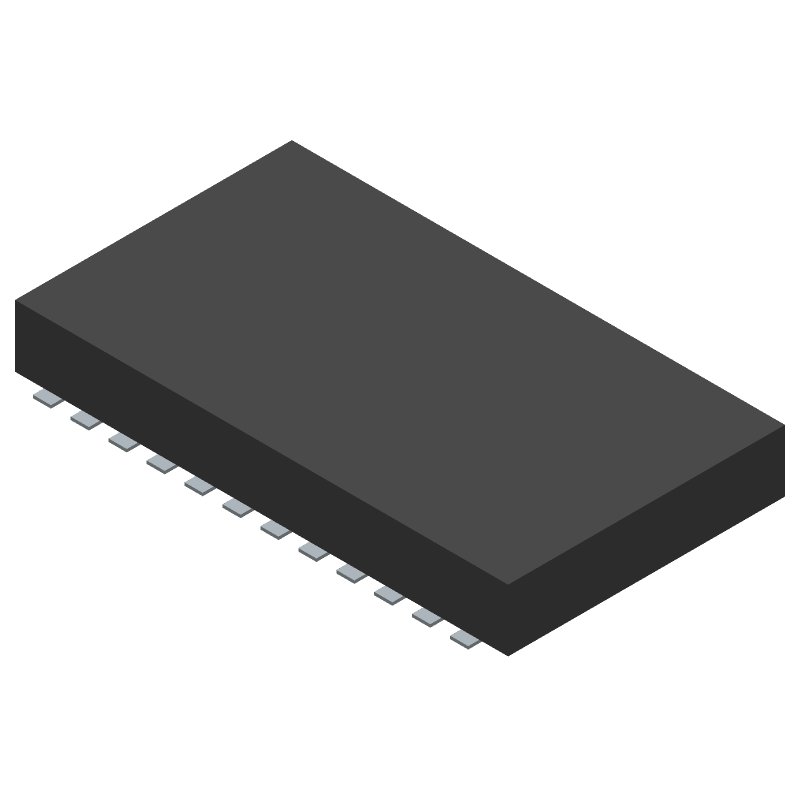

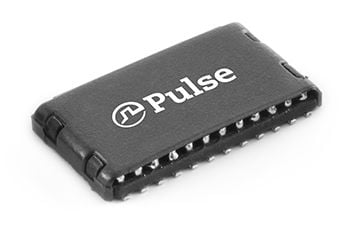

Surface mount pulse transformer for Ethernet applications, supporting 10/100/1000 BASE-T. Features a 1:1 turns ratio, 350µH inductance, and 1.5kV isolation voltage. Operates within a 0°C to 70°C temperature range with a maximum DC current rating of 8mA. This component offers 1dB insertion loss and -10dB return loss, with gull wing leads for secure termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse H5120NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Current Rating | 8mA |
| Depth | 9.65mm |
| Height | 2.08mm |
| Height - Seated (Max) | 2.08mm |
| Inductance | 350uH |
| Insertion Loss | 1dB |
| Isolation Voltage | 1.5kV |
| Lead/Base Style | Gull Wing |
| Length | 16.51mm |
| Max DC Current | 8mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Primary Impedance | 1R |
| Radiation Hardening | No |
| Return Loss | -10dB |
| RoHS Compliant | Yes |
| Secondary Impedance | 1R |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Width | 9.14mm |
| RoHS | Compliant |
