Surface mount telecom transformer featuring a 1:1 turns ratio and 2(1CT:1CT) configuration. This component offers 1.65kV isolation voltage and 350uH inductance. Designed with gull wing leads for secure SMD termination, it operates across a -40°C to 85°C temperature range. Insertion loss is -1dB with a return loss of -12dB.
MountingSurface Mount
Inductance350uH
Quick Jump:
Technical Specifications
Pulse HX1188FNLT technical specifications.
General
Core Material
Plastic
Depth
9.53mm
Height
5.97mm
Height - Seated (Max)
5.99mm
Inductance
350uH
Insertion Loss
-1dB
Isolation Voltage
1.65kV
Lead/Base Style
Gull Wing
Length
12.7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Return Loss
-12dB
RoHS Compliant
Yes
Termination
SMD/SMT
Turns Ratio
1:1
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Pulse HX1188FNLT Datasheet
Download the complete datasheet for Pulse HX1188FNLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

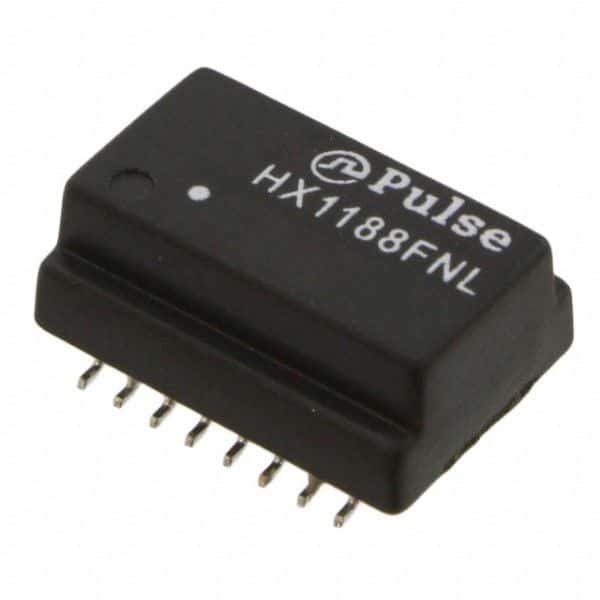

Product Images
