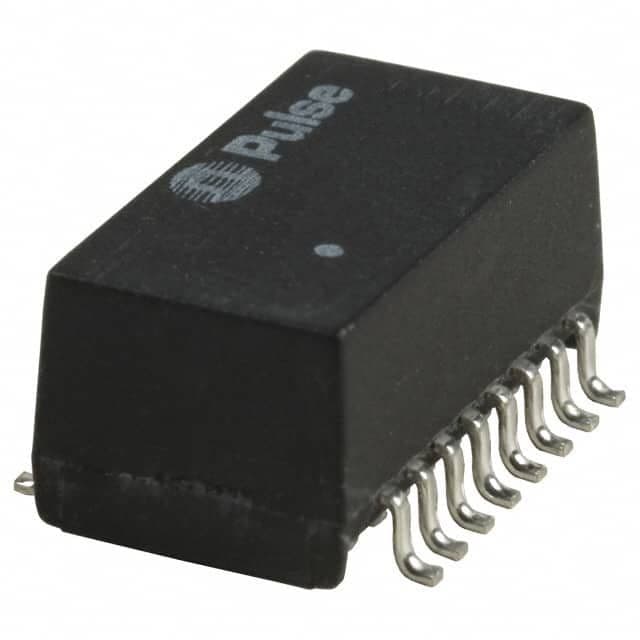

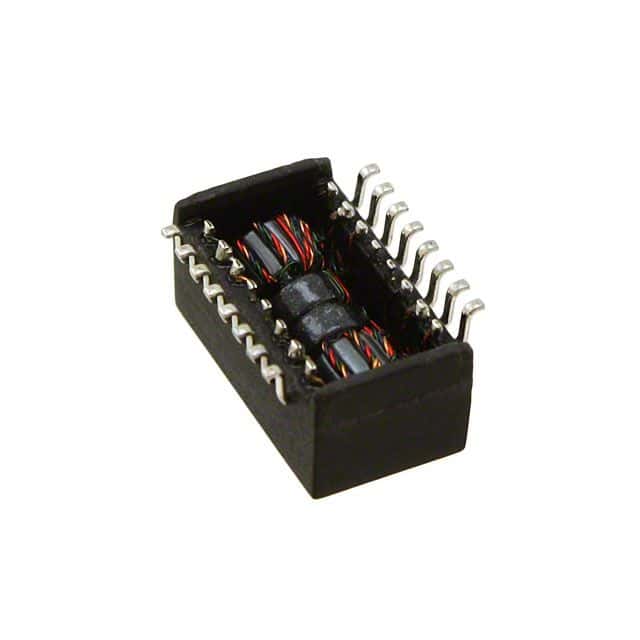

Telecom transformer featuring a 1:1 turns ratio and 1.5 Ohm primary and secondary DC resistance. This surface mount module offers 1.5kV isolation voltage and operates within a -40°C to 85°C temperature range. Designed with gull wing leads for SMD termination, it provides -1dB insertion loss and -20dB return loss.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse HX1188NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| DC Resistance (DCR) | 1.5R |
| Depth | 9.53mm |
| Height | 5.97mm |
| Height - Seated (Max) | 6.22mm |
| Insertion Loss | -1dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 12.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Return Loss | -20dB |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Width | 7.11mm |
| RoHS | Compliant |
Download the complete datasheet for Pulse HX1188NL to view detailed technical specifications.
