Technical Specifications
Pulse HX1198NL technical specifications.
General
Package/Case
Module
Depth
9.65mm
Height
5.97mm
Height - Seated (Max)
6.22mm
Insertion Loss
-1.2dB
Isolation Voltage
1.5kV
Lead Free
Lead Free
Lead/Base Style
Gull Wing
Length
12.7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
Return Loss
-12dB
RoHS Compliant
Yes
Shielding
Unshielded
Termination
SMD/SMT
Turns Ratio
1:1
Width
7.11mm
Compliance
RoHS
Compliant
Datasheet
Pulse HX1198NL Datasheet
Download the complete datasheet for Pulse HX1198NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

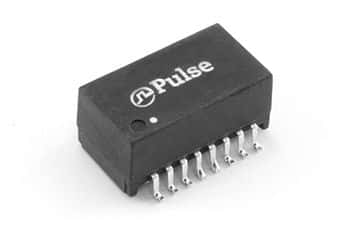

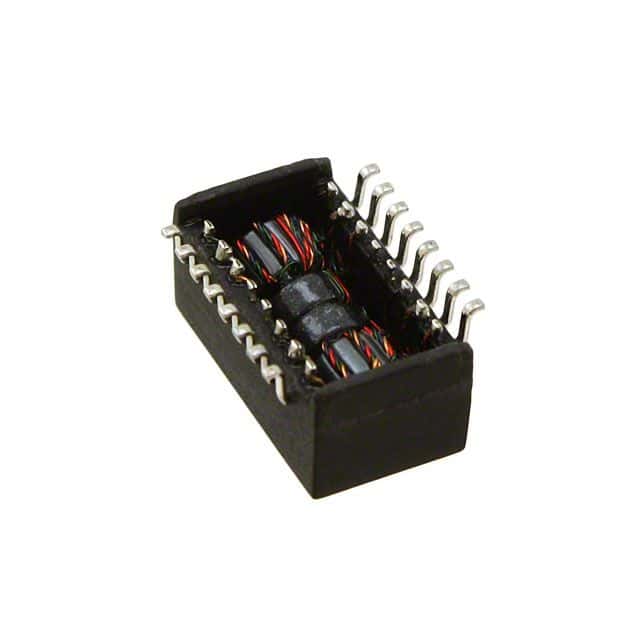

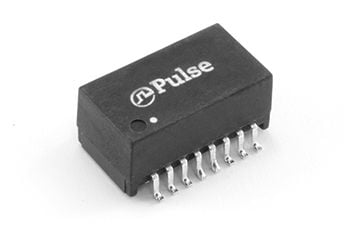

Product Images
