Surface mount telecom transformer featuring 40 terminals with gull wing leads. Offers -1.4dB insertion loss and -12dB return loss, with 1.5kV isolation voltage. Designed for operation between -40°C and 85°C, this lead-free, RoHS compliant component is packaged on tape and reel. Dimensions include a 16mm depth, 12.19mm width, and a maximum seated height of 7.36mm.
MountingSurface Mount
Quick Jump:
Technical Specifications
Pulse HX1234NLT technical specifications.
General
| Depth | 16mm |
| Height | 0.28mm |
| Height - Seated (Max) | 7.36mm |
| Insertion Loss | -1.4dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 28.58mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Return Loss | -12dB |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 12.19mm |
Compliance
| RoHS | Compliant |
Datasheet
Pulse HX1234NLT Datasheet
Download the complete datasheet for Pulse HX1234NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

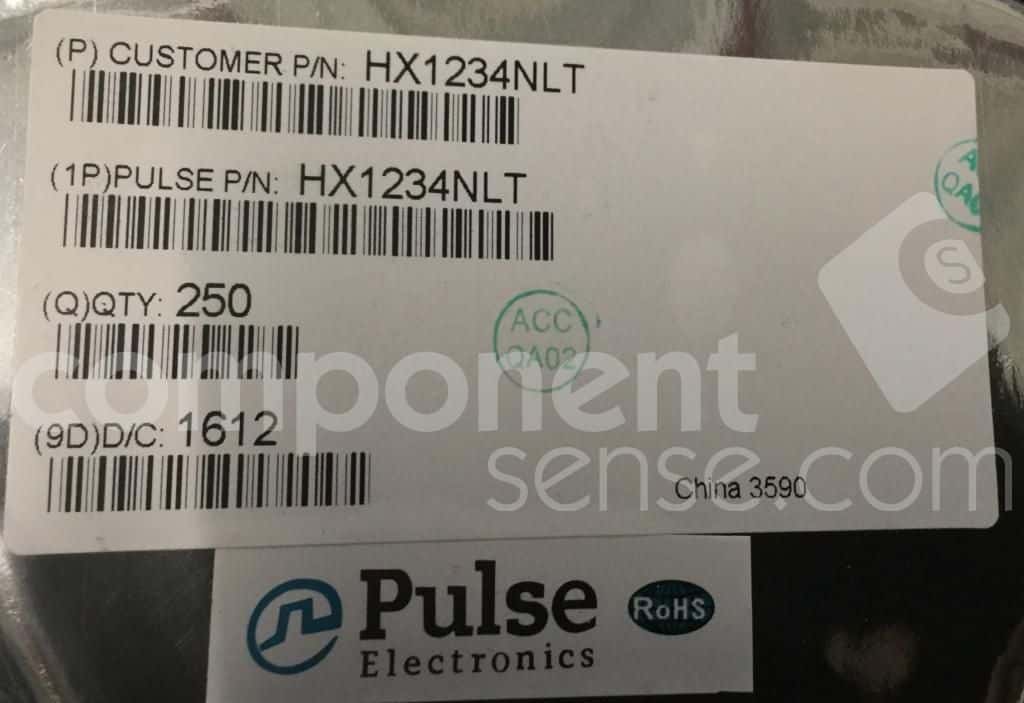

Product Images
