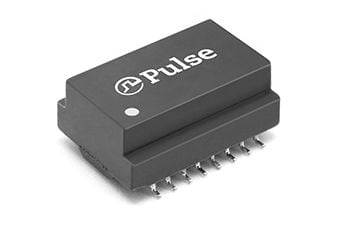

Surface mount telecom transformer featuring a 1:1 turns ratio and 1.5kV isolation voltage. This component offers a -1.1dB insertion loss and -12dB return loss, with a gull wing lead style for secure SMD termination. Operating across a -40°C to 85°C temperature range, it measures 12.7mm in length, 9.53mm in width and depth, and 6mm in height.
Sign in to ask questions about the Pulse HX1260FNL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Pulse HX1260FNL technical specifications.
| Package/Case | SMD/SMT |
| Depth | 9.53mm |
| Height | 6mm |
| Insertion Loss | -1.1dB |
| Isolation Voltage | 1.5kV |
| Lead/Base Style | Gull Wing |
| Length | 12.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 40 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Return Loss | -12dB |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Width | 9.53mm |
| RoHS | Compliant |
Download the complete datasheet for Pulse HX1260FNL to view detailed technical specifications.
