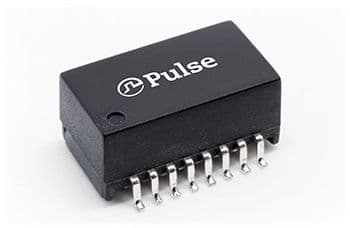

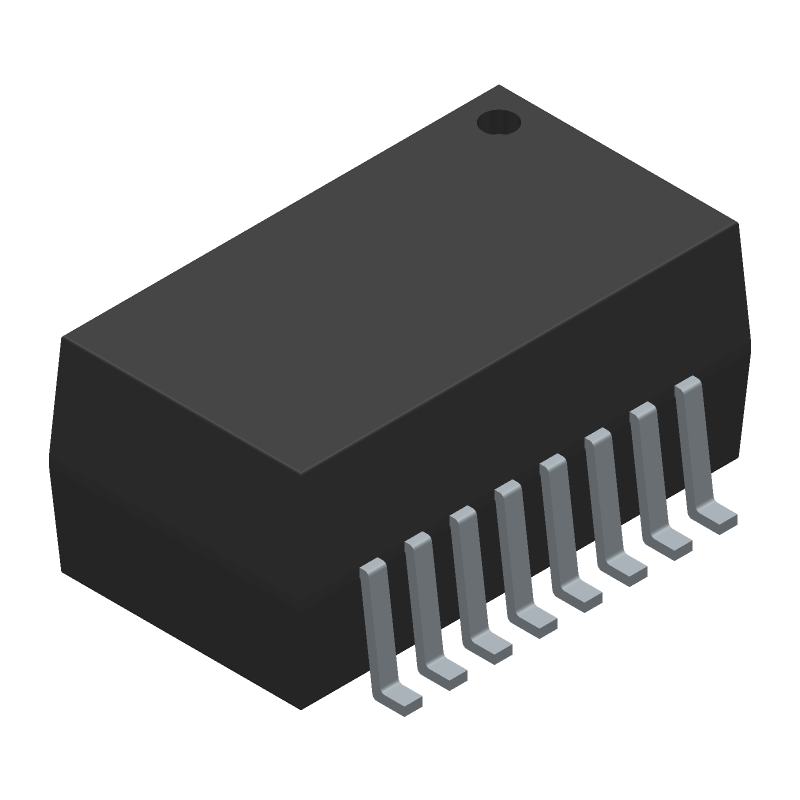

Surface mount telecom transformer with a 1:1 turns ratio, featuring 750mΩ primary and secondary DC resistance. Offers 1.5kV isolation voltage and a maximum operating temperature of 85°C. This RoHS compliant component has an insertion loss of -1.2dB/-1.4dB and a return loss of -12dB. Dimensions include 12.7mm length, 7.11mm width, and 5.97mm height with gull wing leads for secure surface mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse HX2019NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| DC Resistance (DCR) | 750mR |
| Depth | 9.65mm |
| Height | 5.97mm |
| Height - Seated (Max) | 6.22mm |
| Insertion Loss | -1.2dB |
| Insertion Loss | -1.4dB |
| Isolation Voltage | 1.5kV |
| Lead/Base Style | Gull Wing |
| Length | 12.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Return Loss | -12dB |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Weight | 0.035274oz |
| Width | 7.11mm |
| RoHS | Compliant |
