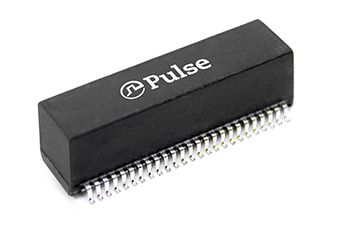

Surface mount datacom transformer for 1000 BASE-T applications. Features a 1:1 turns ratio and 1.5kV isolation voltage. Offers a maximum insertion loss of 1dB and a return loss of -10dB. Operates within a temperature range of -40°C to 85°C. This module is halogen-free and RoHS compliant, with gull wing leads for SMD termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse HX5020NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Depth | 10.92mm |
| Height | 8.33mm |
| Height - Seated (Max) | 8.66mm |
| Insertion Loss | 1dB |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 27.94mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Return Loss | -10dB |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Weight | 0.056438oz |
| Width | 7.54mm |
| RoHS | Compliant |
