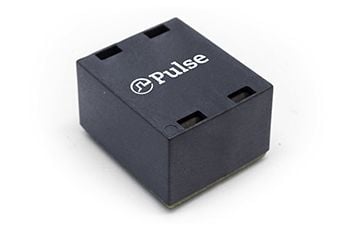

Surface mount pulse transformer featuring 1:1 turns ratio, 350uH inductance, and 1.5kV isolation voltage. Offers 650mR DC resistance, -1.2dB and 1dB insertion loss, and -16dB return loss. Operating temperature range from -40°C to 85°C. Dimensions: 17.27mm length, 17.27mm width, 10.92mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse HX5200NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| DC Resistance (DCR) | 650mR |
| Depth | 17.27mm |
| Height | 10.92mm |
| Height - Seated (Max) | 10.92mm |
| Inductance | 350uH |
| Insertion Loss | -1.2dB |
| Insertion Loss | 1dB |
| Isolation Voltage | 1.5kV |
| Length | 14.73mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 84 |
| Packaging | Tray |
| Primary Impedance | 1R |
| Radiation Hardening | No |
| Return Loss | -16dB |
| RoHS Compliant | Yes |
| Secondary Impedance | 1R |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Width | 17.27mm |
| RoHS | Compliant |
