Dual common mode choke with 590µH inductance and 5.6A DC current rating. Features a low 21mΩ DC resistance (DCR) and operates within a -40°C to 120°C temperature range. This unshielded, SMD/SMT component is supplied on tape and reel, offering a 35% inductance tolerance.
Inductance590uH
Quick Jump:
Technical Specifications
Pulse P0353NLT technical specifications.
General
| DC Current | 5.6A |
| DC Resistance (DCR) | 21mR |
| Depth | 17.02mm |
| Height | 9.91mm |
| Inductance | 590uH |
| Length | 19.56mm |
| Max DC Current | 5.6A |
| Max Operating Temperature | 120°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PO-xxx |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Tolerance | 35% |
| Width | 17.02mm |
Compliance
| RoHS | Compliant |
Datasheet
Pulse P0353NLT Datasheet
Download the complete datasheet for Pulse P0353NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

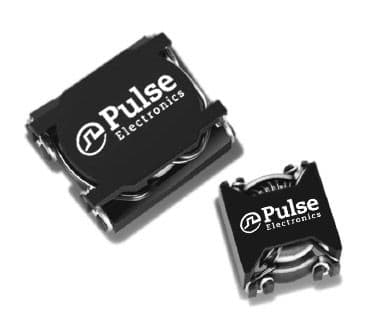

Product Images
