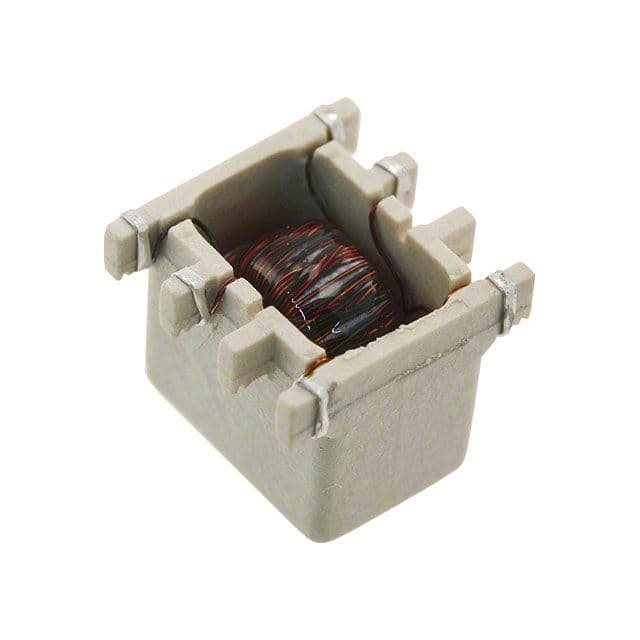

General purpose pulse transformer featuring a 1:1.1 turns ratio and 1.5kV isolation voltage. This surface mount component offers 3300uH inductance with primary and secondary DC resistance of 1.6 Ohms. Operating temperature range spans -40°C to 130°C, with dimensions of 9mm (L) x 8.6mm (W) x 7.6mm (H). The unshielded, SMD termination package is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse P0544NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| DC Resistance (DCR) | 1.6R |
| Depth | 8.64mm |
| Height | 7.6mm |
| Inductance | 3300uH |
| Isolation Voltage | 1.5kV |
| Length | 9mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1.1 |
| Width | 8.6mm |
| RoHS | Compliant |
Download the complete datasheet for Pulse P0544NL to view detailed technical specifications.
