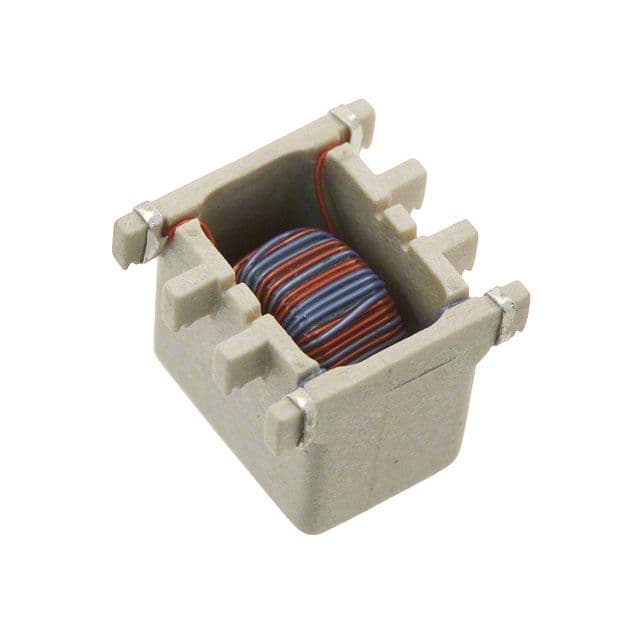

1:1 Pulse Transformer, featuring 1.5kVrms isolation and 1200uH inductance. This surface mount component offers primary and secondary DC resistance of 910mR. Operating temperature range is -40°C to 130°C. Dimensions include 9.02mm length, 8.6mm width, 8.64mm depth, and 7.6mm height. It is RoHS compliant and supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse PA0184NLT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| DC Resistance (DCR) | 910mR |
| Depth | 8.64mm |
| Height | 7.6mm |
| Inductance | 1200uH |
| Isolation Voltage | 1.5kV |
| Length | 9.02mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Weight | 0.021164oz |
| Width | 8.6mm |
| RoHS | Compliant |
