Surface mount switching transformer with a 1:0.083 turns ratio, featuring 0.42 Ohm primary and 0.0075 Ohm secondary DC resistance. This component offers 7W power handling and operates across a -40°C to 125°C temperature range. Its gull wing lead style and SMD mounting facilitate efficient integration into power supply designs. Dimensions include a 13.08mm length and width, 11.43mm seated height, and 15.24mm depth.
MountingSurface Mount
Inductance253uH
Quick Jump:
Technical Specifications
Pulse PA1133NLT technical specifications.
General
| Depth | 15.24mm |
| Height - Seated (Max) | 11.43mm |
| Inductance | 253uH |
| Lead/Base Style | Gull Wing |
| Length | 13.08mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Turns Ratio | 1:0.083 |
| Width | 13.08mm |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PA1133NLT Datasheet
Download the complete datasheet for Pulse PA1133NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

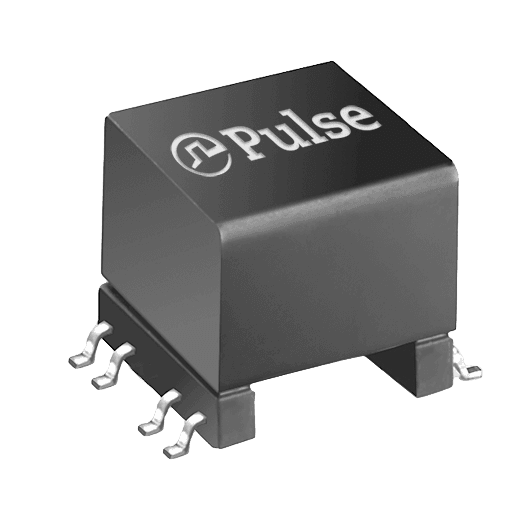

Product Images
