Pulse

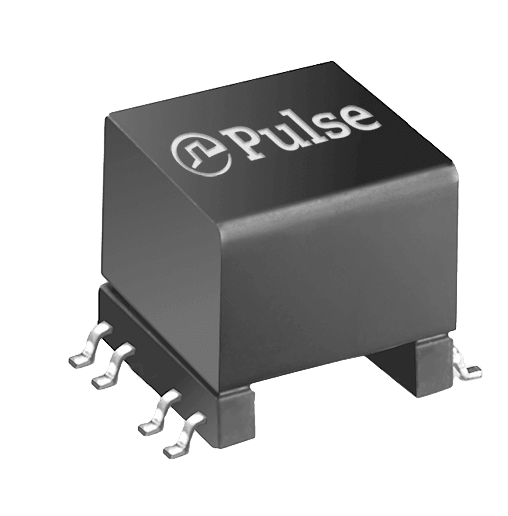

PA1283NLT
Switching Transformer 1:0.273:0.682 0.57Ohm/1Ohm Prim. DCR 0.04Ohm Sec. DCR 7W 8 Terminal Gull Wing SMD
MountingSurface Mount
Inductance155uH
Quick Jump:
Technical Specifications
Pulse PA1283NLT technical specifications.
General
DC Resistance (DCR)
40mR
Depth
15.24mm
Height - Seated (Max)
11.43mm
Inductance
155uH
Lead/Base Style
Gull Wing
Length
13.08mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Turns Ratio
1:0.273
Width
13.08mm
Compliance
RoHS
Compliant
Datasheet
Pulse PA1283NLT Datasheet
Download the complete datasheet for Pulse PA1283NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
