SMD switching transformer featuring a 5:2.5:1 turns ratio. Primary DC resistance measures 0.089 Ohms and 0.084 Ohms, with secondary DC resistance at 0.0062 Ohms. Ten gull wing terminals facilitate surface mount assembly. RoHS compliant for environmental responsibility.
Quick Jump:
Technical Specifications
Pulse PA2369NLT technical specifications.
General
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Pulse PA2369NLT Datasheet
Download the complete datasheet for Pulse PA2369NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

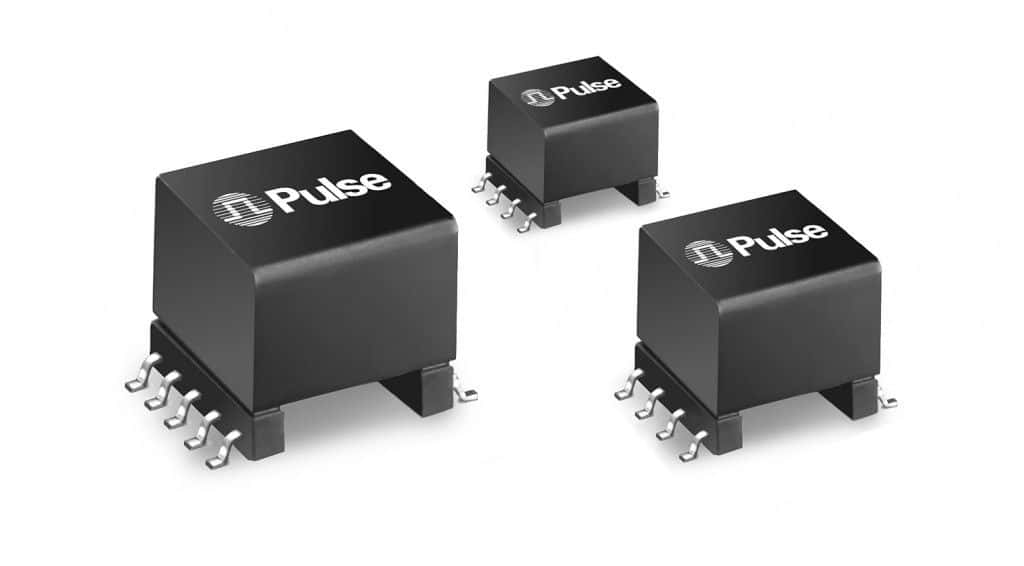

Product Images
