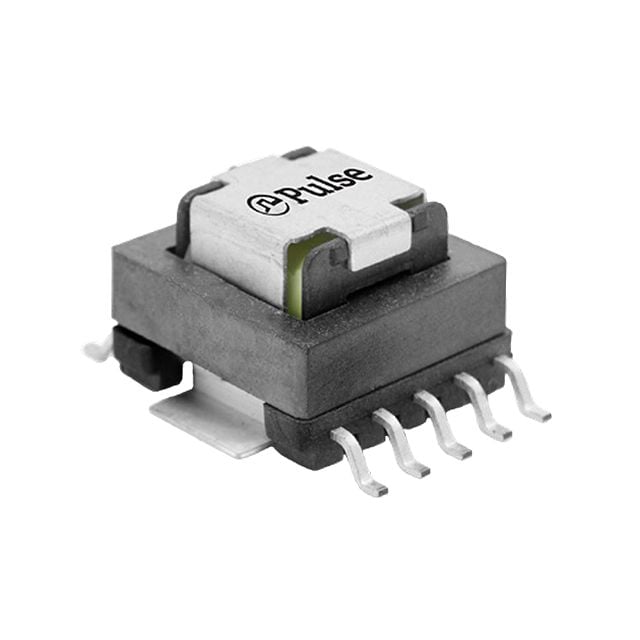

Surface mount current transformer with a 1:100 turns ratio, designed for operation from 50 kHz to 500 kHz. Features a 35A primary current rating, 500Vrms isolation, and a primary DCR of 0.003 Ohms. Offers a secondary DCR of 1.4 Ohms and an inductance of 5.6mH. This RoHS compliant component utilizes gull wing termination for secure surface mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse PB0026NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 35A |
| DC Resistance (DCR) | 1.4R |
| Depth | 19.91mm |
| Frequency | 500kHz |
| Height | 10mm |
| Height - Seated (Max) | 10.16mm |
| Inductance | 5.6mH |
| Lead/Base Style | Gull Wing |
| Length | 19.91mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 50 to 500 kHz |
| Package Quantity | 70 |
| Packaging | Bulk |
| Primary Impedance | 0.42mR |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Secondary Impedance | 1.4R |
| Series | PB002XNL |
| Shielding | Unshielded |
| Termination | Gull Wing |
| Turns Ratio | 100:1 |
| Width | 14.22mm |
| RoHS | Compliant |
