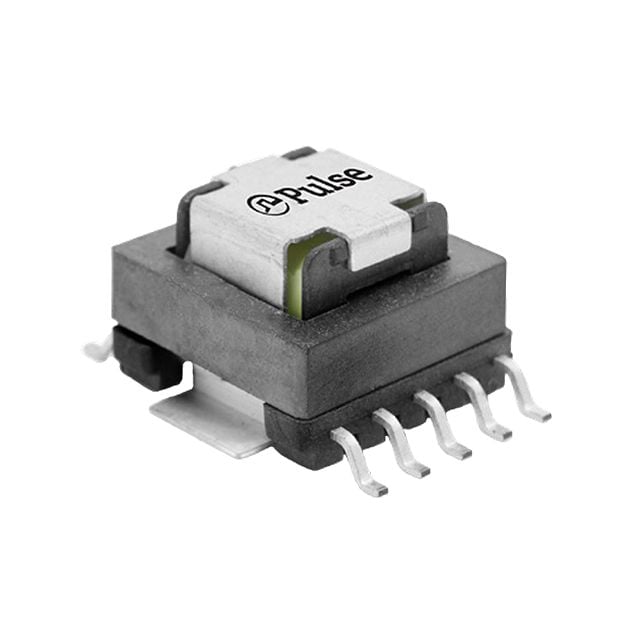

Current Sense Transformer with a 200:1 turns ratio, designed for surface mount applications. Features a 35A current rating, 500kHz operating frequency, and 22.4mH inductance. Primary DCR is 0.42mR, secondary DCR is 2.9R, and DC resistance is 3mR. This component offers gull wing termination and operates within a -40°C to 130°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse PB0027NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 35A |
| DC Resistance (DCR) | 3mR |
| Depth | 19.91mm |
| Frequency | 500kHz |
| Height | 10mm |
| Height - Seated (Max) | 10.16mm |
| Inductance | 22.4mH |
| Lead/Base Style | Gull Wing |
| Length | 19.91mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 50 to 500 kHz |
| Package Quantity | 70 |
| Packaging | Bulk |
| Primary Impedance | 0.42mR |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Secondary Impedance | 2.9R |
| Series | PB002XNL |
| Shielding | Unshielded |
| Termination | Gull Wing |
| Transformer Type | CURRENT SENSE TRANSFORMER |
| Turns Ratio | 200:1 |
| Width | 14.22mm |
| RoHS | Compliant |
