Technical Specifications
Pulse PE-51591NL technical specifications.
General
| Package/Case | Radial |
| Current Rating | 2A |
| DC Resistance (DCR) | 60mR |
| Depth | 7.11mm |
| Diameter | 16.26mm |
| Inductance | 20uH |
| Lead Pitch | 7.11mm |
| Lead/Base Style | Radial |
| Max DC Current | 2A |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 95 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 20kHz |
| Tolerance | 20% |
| Width | 0.28inch |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PE-51591NL Datasheet
Download the complete datasheet for Pulse PE-51591NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

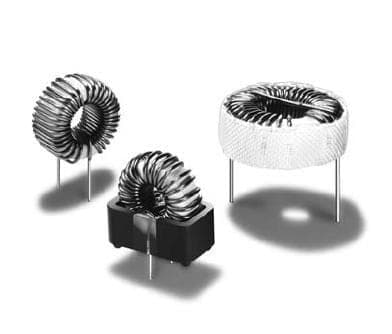

Product Images
