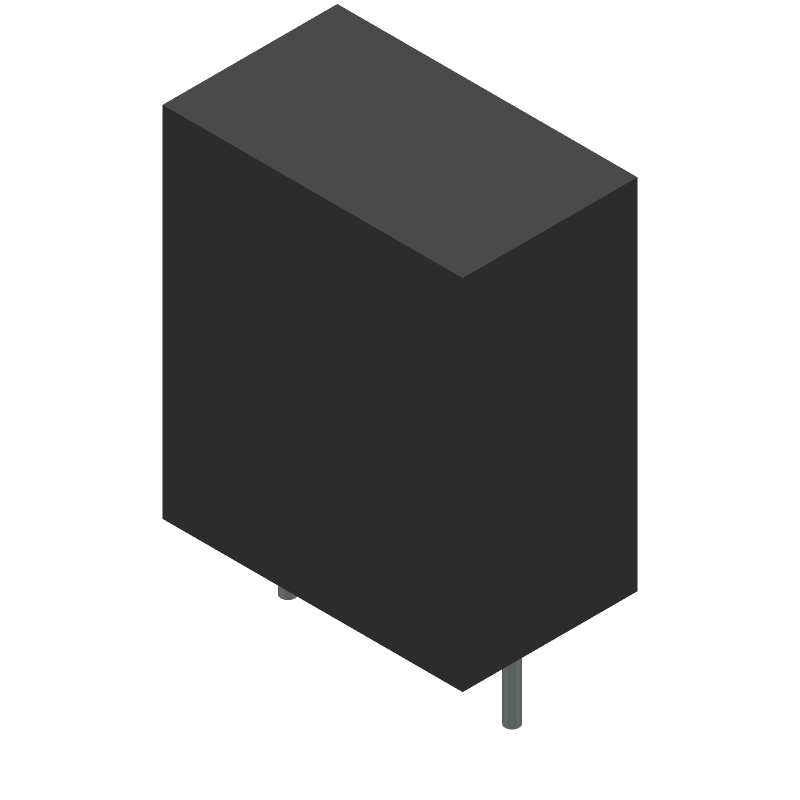

Current Transformer with a 1:50 turns ratio, designed for general applications. Features a primary current rating of 20A and a maximum DC current of 20A. Offers a primary DC resistance of 0.7 Ohms and a secondary DC resistance of 0.7 Ohms. Operates at frequencies up to 200kHz, with a test frequency of 15.75kHz. Inductance is 5mH. This through-hole component has radial leads with a 12.7mm pitch and PC pin termination. Operating temperature range is -40°C to 130°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse PE-51686NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 20A |
| DC Current | 20A |
| DC Resistance (DCR) | 700mR |
| Depth | 9.91mm |
| Frequency | 200kHz |
| Height | 20.32mm |
| Height - Seated (Max) | 17.78mm |
| Inductance | 5mH |
| Lead Pitch | 12.7mm |
| Lead/Base Style | Radial |
| Length | 17.01mm |
| Max DC Current | 20A |
| Max Operating Temperature | 130°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 60 |
| Packaging | Tray |
| Radiation Hardening | No |
| Resistance | 0.7R |
| RoHS Compliant | Yes |
| Series | THT |
| Termination | PC Pin |
| Test Frequency | 15.75kHz |
| Turns Ratio | 1:50 |
| Width | 17.78mm |
| RoHS | Compliant |
