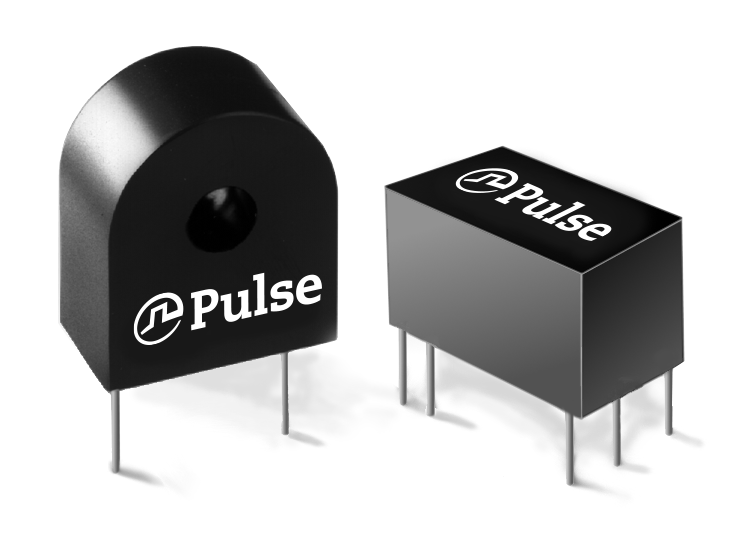

Current Transformer with a 1:100 turns ratio, designed for general current sensing applications. Features a primary DC resistance of 1.4 Ohms and a secondary DC resistance of 1 Ohm, supporting a maximum DC current of 20A. Operates efficiently within a frequency range of 20kHz to 200kHz, with a test frequency of 15.75kHz. This through-hole mounted component offers radial lead style with PC pin termination and a lead pitch of 12.7mm. Constructed for reliability, it operates from -40°C to 130°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse PE-51687NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 100 |
| Current Rating | 20A |
| DC Current | 20A |
| DC Resistance (DCR) | 1.4R |
| Depth | 9.91mm |
| Frequency | 200kHz |
| Height | 20.32mm |
| Height - Seated (Max) | 17.78mm |
| Inductance | 20mH |
| Lead Pitch | 12.7mm |
| Lead/Base Style | Radial |
| Length | 17.01mm |
| Max DC Current | 20A |
| Max Operating Temperature | 130°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Frequency | 20 to 200KHz |
| Package Quantity | 60 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | THT |
| Termination | PC Pin |
| Test Frequency | 15.75kHz |
| Turns Ratio | 1:100 |
| Width | 17.78mm |
| RoHS | Compliant |
