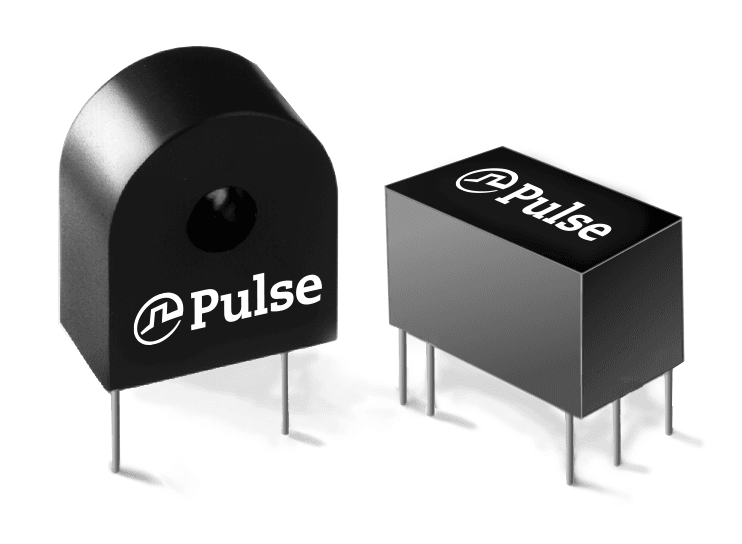

General Current Sense Transformer with a 1:200 turns ratio, designed for through-hole mounting. Features a primary DC current rating of 20A and a maximum operating frequency of 200kHz. Offers a primary DCR of 200 Ohms and a secondary DCR of 4.5 Ohms, with an inductance of 80mH. Operates within a temperature range of -40°C to 130°C and boasts 3750Vrms isolation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse PE-51688NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 200 |
| Current Rating | 20A |
| DC Current | 20A |
| DC Resistance (DCR) | 4.5R |
| Depth | 9.91mm |
| Frequency | 200kHz |
| Height | 20.32mm |
| Height - Seated (Max) | 17.78mm |
| Inductance | 80mH |
| Lead Pitch | 12.7mm |
| Lead/Base Style | Radial |
| Length | 17.01mm |
| Max DC Current | 20A |
| Max Operating Temperature | 130°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Frequency | 20 to 200KHz |
| Orientation | Vertical |
| Package Quantity | 60 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | THT |
| Termination | PC Pin |
| Test Frequency | 15.75kHz |
| Turns Ratio | 1:200 |
| Width | 17.78mm |
| RoHS | Compliant |
