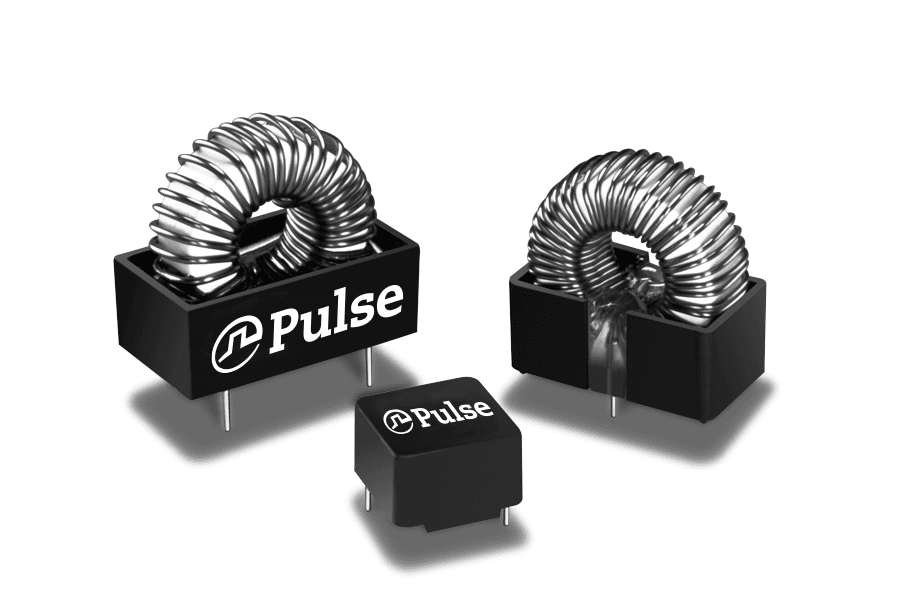

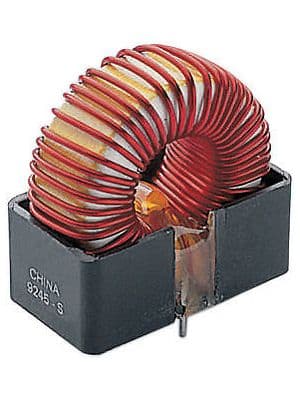

Radial-mount, through-hole general-purpose inductor featuring 220µH inductance with a 20% tolerance. This unshielded component offers a 3A current rating (DC and RMS) and a low 70mΩ DC resistance. Designed for operation between -40°C and 130°C, it boasts a UL94 V-0 flammability rating and is RoHS compliant. The radial leads have a 12.7mm pitch and 0.8128mm diameter.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse PE-53116NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Current Rating | 3A |
| DC Current | 3A |
| DC Resistance (DCR) | 70mR |
| Depth | 17.91mm |
| Flammability Rating | UL94 V-0 |
| Height | 35.56mm |
| Inductance | 220uH |
| Lead Diameter | 0.8128mm |
| Lead Pitch | 12.7mm |
| Lead/Base Style | Radial |
| Length | 33.02mm |
| Max DC Current | 3A |
| Max Operating Temperature | 130°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Radial |
| Package Quantity | 35 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 0.07R |
| RMS Current (Irms) | 3A |
| RoHS Compliant | Yes |
| Series | KlipMount™ |
| Series Resistance | 70mR |
| Shielding | Unshielded |
| Termination | Radial |
| Tolerance | 20% |
| Width | 0.7inch |
| RoHS | Compliant |
