Surface mount power inductor featuring a shielded toroid design. Offers inductance values of 7.5µH and 5.1µH with a maximum DC current rating of 5.4A. This component has a low DC resistance of 17.7mΩ and operates within a temperature range of -40°C to 130°C. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating5.4A
MountingSurface Mount
Inductance5.1uH
Quick Jump:
Technical Specifications
Pulse PE-53651NLT technical specifications.
General
| Package/Case | Nonstandard |
| Current Rating | 5.4A |
| DC Current | 5.4A |
| DC Resistance (DCR) | 17.7mR |
| Depth | 14.35mm |
| Height | 9.14mm |
| Height - Seated (Max) | 0.36inch |
| Inductance | 5.1uH |
| Length | 14.35mm |
| Max DC Current | 5.4A |
| Max Operating Temperature | 130°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 1MHz |
| Series | SLIC |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Width | 0.565inch |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PE-53651NLT Datasheet
Download the complete datasheet for Pulse PE-53651NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

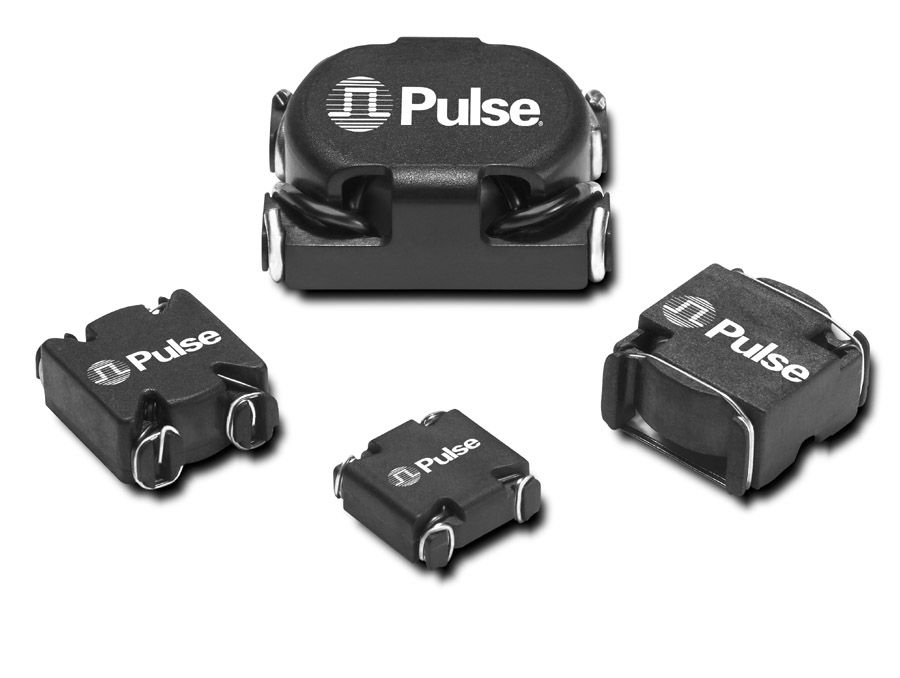

Product Images
