Surface mount fixed inductor with 78µH inductance and 20% tolerance. Features a 460mA current rating, 800mΩ DC resistance, and operates within a -40°C to 130°C temperature range. This unshielded toroid inductor is supplied on tape and reel.
PackageSMD/SMT
Current Rating460mA
MountingSurface Mount
Inductance78uH
Quick Jump:
Technical Specifications
Pulse PE-53812SNLT technical specifications.
General
| Package/Case | SMD/SMT |
| Current Rating | 460mA |
| DC Current | 460mA |
| DC Resistance (DCR) | 800mR |
| Depth | 11.05mm |
| Height | 9.14mm |
| Inductance | 78uH |
| Inductance Tolerance | 20% |
| Length | 0.44inch |
| Max DC Current | 460mA |
| Max Operating Temperature | 130°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 300 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 460mA |
| RoHS Compliant | Yes |
| Series | LCI |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Width | 0.435inch |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PE-53812SNLT Datasheet
Download the complete datasheet for Pulse PE-53812SNLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

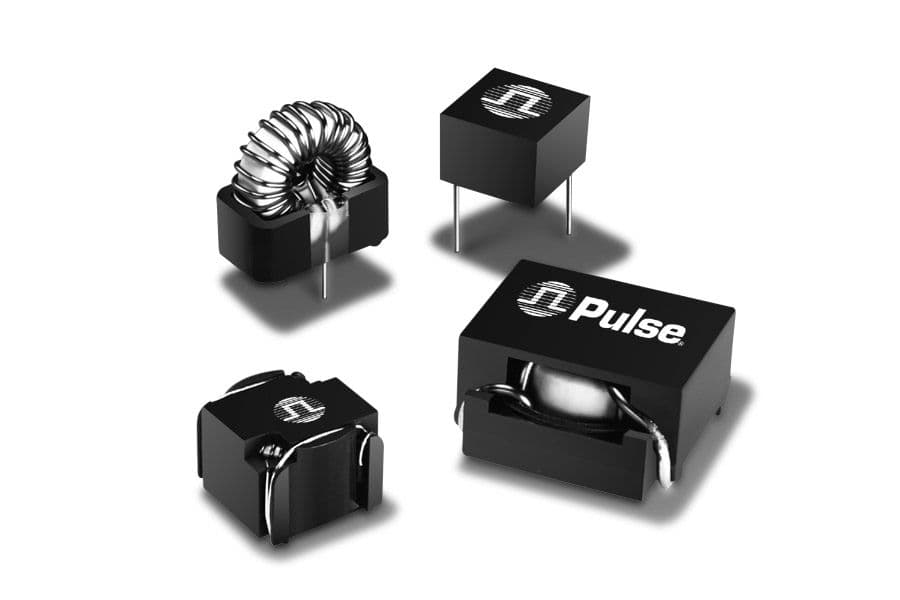

Product Images
