General purpose radial inductor featuring 173µH inductance with a 20% tolerance. This amorphous magnetic-core component offers a 540mA current rating and a DC resistance of 600mΩ. Designed for through-hole mounting with a 9.52mm lead pitch, it operates within a temperature range of -40°C to 130°C and is RoHS compliant.
PackageRadial
Current Rating540mA
MountingThrough Hole, Radial
Inductance173uH
Quick Jump:
Technical Specifications
Pulse PE-53819NL technical specifications.
General
Package/Case
Radial
Current Rating
540mA
DC Current
540mA
DC Resistance (DCR)
600mR
Depth
12.57mm
Height
9.52mm
Height - Seated (Max)
0.375inch
Inductance
173uH
Lead Diameter
0.51mm
Lead Pitch
9.52mm
Lead/Base Style
Radial
Length
12.57mm
Max DC Current
540mA
Max Operating Temperature
130°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Through Hole, Radial
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
LP
Shielding
Unshielded
Termination
SMD/SMT
Tolerance
20%
Width
0.495inch
Compliance
RoHS
Compliant
Datasheet
Pulse PE-53819NL Datasheet
Download the complete datasheet for Pulse PE-53819NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

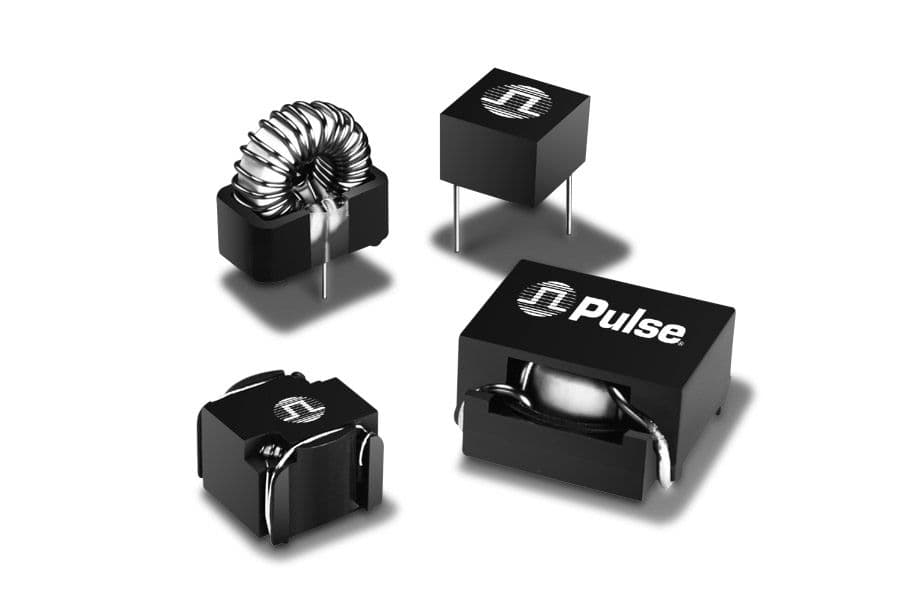

Product Images
