General purpose inductor featuring 112µH inductance with a 20% tolerance. This amorphous magnetic-core, unshielded, surface mount component offers a 1.26A current rating and a DC resistance of 300mΩ. Operating across a temperature range of -40°C to 130°C, it is RoHS compliant and packaged in tape and reel.
PackageNonstandard
Current Rating1.26A
MountingSurface Mount
Inductance112uH
Quick Jump:
Technical Specifications
Pulse PE-53829SNLT technical specifications.
General
| Package/Case | Nonstandard |
| Current Rating | 1.26A |
| DC Current | 1.26A |
| DC Resistance (DCR) | 300mR |
| Depth | 15.24mm |
| Height | 9.91mm |
| Height - Seated (Max) | 0.39inch |
| Inductance | 112uH |
| Length | 15.24mm |
| Max DC Current | 1.26A |
| Max Operating Temperature | 130°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 1.26A |
| RoHS Compliant | Yes |
| Series | LCI |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Width | 0.6inch |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PE-53829SNLT Datasheet
Download the complete datasheet for Pulse PE-53829SNLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

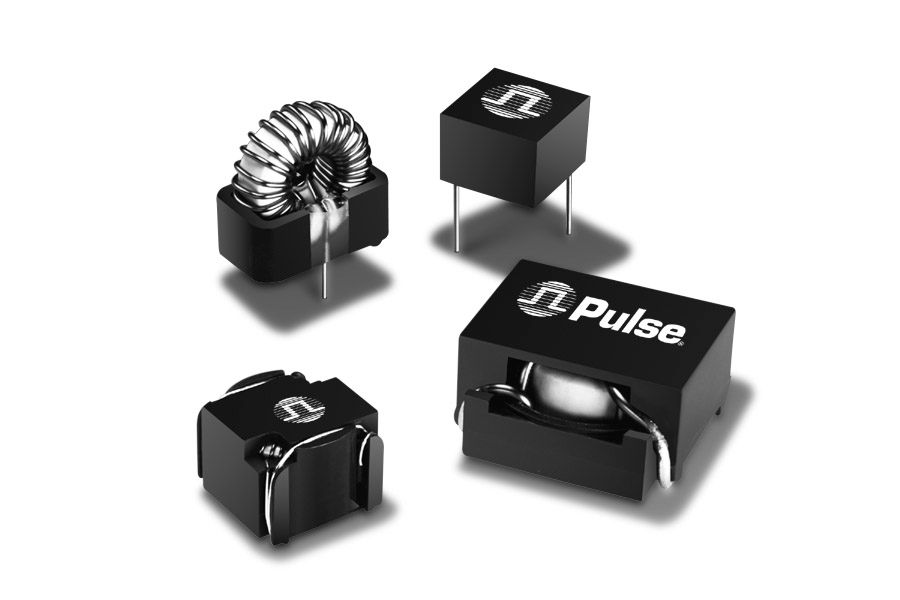

Product Images
